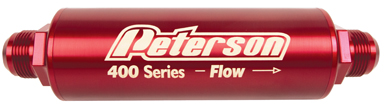

400 Series Filters
Peterson's 400 series filters provide the best filtering available for fuel or oil. Features include anodized billet aluminum body and end caps for durability and resistance to fluid corrosion., stainless steel mesh screen and a pleated element for high flow.
400 Series Oil &Fuel Filter
7" long x 2.5" diameter
45 Micron Filter - Fuel
With Bypass
09-0475 -8 AN fittings
09-3475 -8 Wiggins
09-0476 -10 AN fittings
09-3476 -10 Wiggins
09-0477 -12 AN fittings
09-3477 -12 Wiggins
Without Bypass
09-0482 -8AN fittings
09-3482 -8 Wiggin
09-0483 -10 AN fittings
09-3483 -10 Wiggins
09-0484 -12 AN fittings
09-3484 -12 Wiggins
60 Micron Filter - Fuel/Oil
With Bypass
09-0450 -8 AN fittings
09-3450 -8 Wiggins
09-0451 -10 AN fittings
09-3451 -10 Wiggins
09-0452 -12 AN fittings
09-3452 -12 Wiggins
09-0453 -16 AN fittings
09-3453 -16 Wiggins
Without Bypass
09-0456 -8 AN fittings
09-3456 -8 Wiggin
09-0457 -10 AN fittings
09-3457 -10 Wiggins
09-0458 -12 AN fittings
09-3458 -12 Wiggins
09-0459 -16 AN fittings
09-3459 -16 Wiggins
75 Micron Filter - Oil
With Bypass
09-0430 -8 AN fittings
09-3430 -8 Wiggins
09-0431 -10 AN fittings
09-3431 -10 Wiggins
09-0432 -12 AN fittings
09-3432 -12 Wiggins
09-0433 -16 AN fittings
09-3433 -16 Wiggins
09-0426 -20 AN fittings
09-3424 -20 Wiggins
Without Bypass
09-0436 -8AN fittings
09-3436 -8 Wiggin
09-0437 -10 AN fittings
09-3437 -10 Wiggins
09-0438 -12 AN fittings
09-3438 -12 Wiggins
09-0439 -16 AN fittings
09-3439 -16 Wiggins
09-0425 -20 AN fittings
09-3425 -20 Wiggins
100 Micron Filter - Oil
With Bypass
09-1430 -8 AN fittings
09-4430 -8 Wiggins
09-1431 -10 AN fittings
09-4431 -10 Wiggins
09-1432 -12 AN fittings
09-4432 -12 Wiggins
09-1433 -16 AN fittings
09-4433 -16 Wiggins
09-1426 -20 AN fittings
09-4426 -20 Wiggins
Without Bypass
09-1436 -8 AN fittings
09-4436 -8 Wiggin
09-1437 -10 AN fittings
09-4437 -10 Wiggins
09-1438 -12 AN fittings
09-4438 -12 Wiggins
09-1439 -16 AN fittings
09-4439 -16 Wiggins
09-1425 -20 AN fittings
09-4425 -20 Wiggins
45 Micron Filter Long Body - Fuel
9 " long x 2.5" diameter
Our 2400 series filters feature a longer body to give more capacity in the fuel system. Available in both Wiggins style and AN end Caps.
Without Bypass
09-2482 -8AN fittings
09-5482 -8 Wiggin
09-2483 -10 AN fittings
09-5483 -10 Wiggins
09-2484 -12 AN fittings
09-5484 -12 Wiggins
Oil Filter w/Inlet -10 An Accessory Port
Filter features a -10AN port for an extra feed line or temperature port
60 Micron Filter
With Bypass
09-0448 -12 AN fittings
09-0449 -16 AN fittings
09-0423 -20 AN fittings
Without Bypass
09-0454 -12 AN fittings
09-0455 -16 AN fittings
75 Micron Filter
With Bypass
09-0434 -12 AN fittings
09-0435 -16 AN fittings
09-0428 -20 AN fittings
Without Bypass
09-0442 -12 AN fittings
09-0443 -16 AN fittings
09-0427 -20 AN fittings
100 Micron Filter
With Bypass
09-0448 -12 AN fittings
09-0449 -16 AN fittings
09-0423 -20 AN fittings
Without Bypass
09-0454 -12 AN fittings
09-0455 -16 AN fittings
Fuel Filter w/ (2) Inlet -6 AN Return Ports
Filter features -6AN return ports for fuel return instead of returning to the tank.
45 Micron Filter
With Bypass
09-0475 -8 AN fittings
09-3475 -8 Wiggins
09-0476 -10 AN fittings
09-3476 -10 Wiggins
09-0477 -12 AN fittings
09-3477 -12 Wiggins
Without Bypass
09-0482 -8AN fittings
09-3482 -8 Wiggin
09-0483 -10 AN fittings
09-3483 -10 Wiggins
09-0484 -12 AN fittings
09-3484 -12 Wiggins

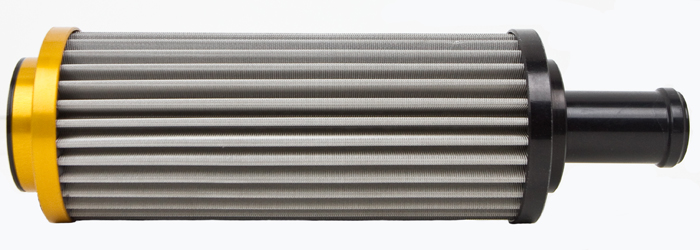

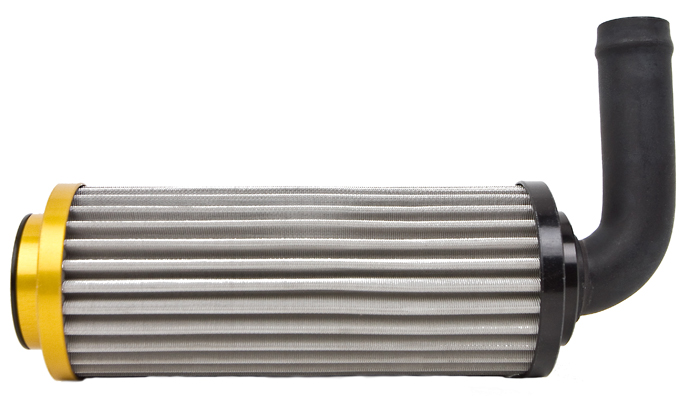

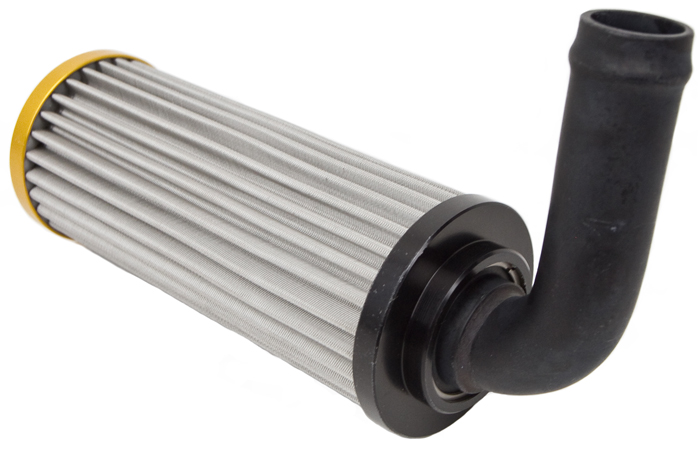

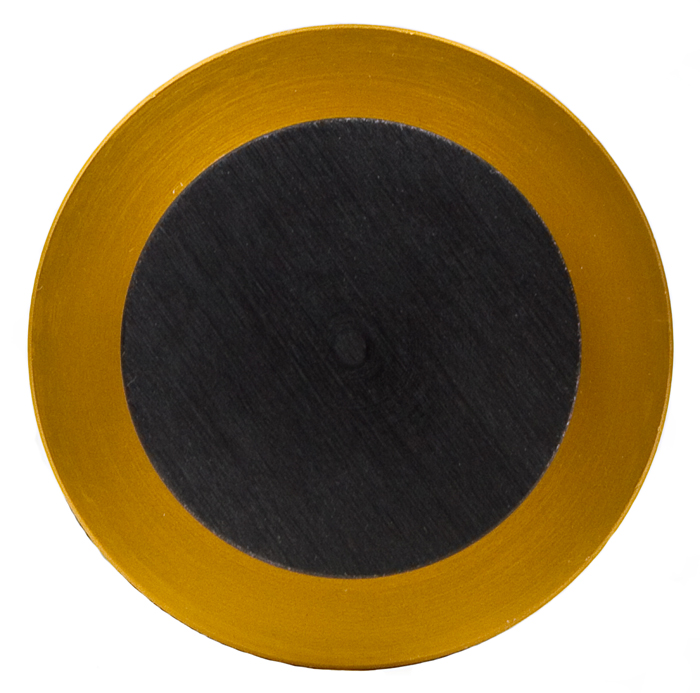

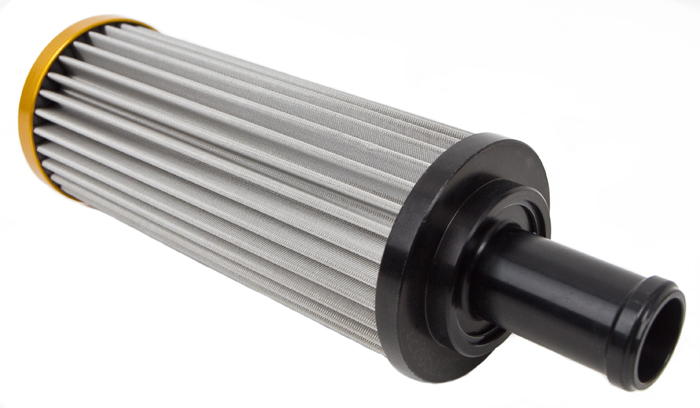

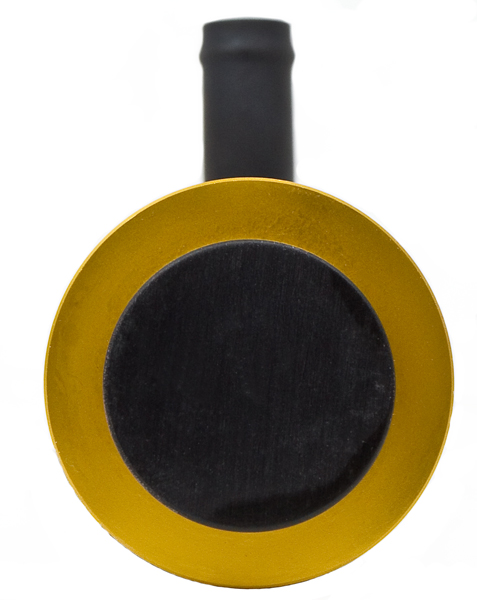

In-Tank Fuel Filter
Peterson's in-tank fuel filter uses a stainless pleated filter for superior filtration. Attachment is made by slipping a pick-up hose over the 3/4" neck and securing with a clamp. It is available in straight or 90º styles.
3/4" Push-On
09-1460 Straight 60 Micron
09-1461 90º 60 Micron
09-1480 Straight 45 Micron
09-1481 90º 45 Micron
5/8"" Push-On
09-1462 Straight 60 Micron
09-1463 90º 60 Micron
09-1482 Straight 45 Micron
09-1483 90º 45 Micron
400 Series Stainless Steel Elements
Our 400 Series elements feature anodized billet aluminum endcaps, stainless steel screen mesh and a special epoxy to be compatible with most fuel Available in 45, 60, 75 and 100 micron to give you a full selection for fuel and oil. To keep full flow we have a separate filter element for our -20 filters which have a larger ID to maintain a full -20AN size throughout.
-8 thru -16 w/bypass
45 Micron (Red) 09-0481
60 Micron (Black) 09-0461
75 Micron (Blue) 09-0441
100 Micron (Purple) 09-1441
-8 thru -16 w/o bypass
45 Micron (Red) 09-0480
60 Micron (Black) 09-0460
75 Micron (Blue) 09-0440
100 Micron (Purple) 09-1440
-20 w/bypass
75 Micron (Blue) 09-1419
100 Micron (Purple) 09-0415
-20 w/o bypass
75 Micron (Blue) 09-1418
100 Micron (Purple) 09-0414

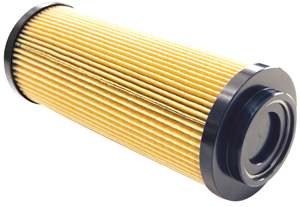

400 Series Cellulose Elements
Our 400 Series cellulose elements feature a 10/20 micron rating for fine filtering of fuel or oil. Independent testing has shown only a 9 psi pressure drop using 20-50 oil.
-8 thru -16 w/bypass
19-0411 Black/Black endcaps, for oil only.
-8 thru -16 w/o bypass
19-0410 Black/Black endcaps, for fuel only.

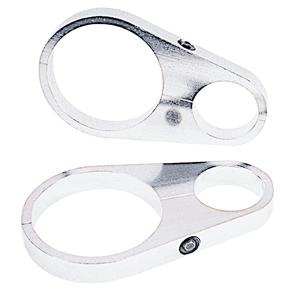

Filter Mount Brackets
09-0490 Fits 1 1/4" tube - 2 pieces
09-0491 Fits 1 3/8" tube - 2 pieces
09-0492 Fits 1 1/2" tube - 2 pieces
09-0493 Fits 1 3/4" tube - 2 pieces
09-0494 Firewall mount- 2 pieces
09-0495 Fits 2" tube - 2 pieces
09-0496 Fits 2 1/4" tube - 2 pieces
400 Series Filter Rebuild Kit
09-0489 -8 thru -20 Filters. Includes 4 O-rings and 1 snap ring
400 Series Filter Bypass
09-0487 Filter Bypass Block off Plate
09-0488 Filter Bypass Cartridge assembly

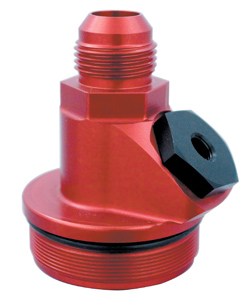

Inlet Port End Cap Fits 400 Series Filters
Peterson has designed a filter end cap which allows addition of an accessory
fitting at the inlet side of the filter. The -10 AN Port will accept fittings
for additional lines or temperature sender fittings.
09-0400-027 -12 Inlet Filter Cap w/ -10 AN Accessory Port
09-0400-028 -16 Inlet Filter Cap w/ -10 AN Accessory Port
09-0400-032 -20 Inlet Filter Cap w/ -10 AN Accessory Port

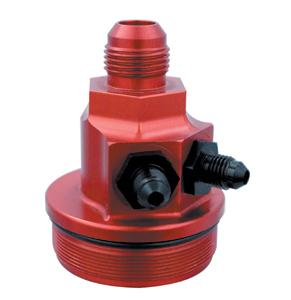

Accessory Return Port End Cap Fits 400 Series Filters
Peterson's return port cap features two -6AN ports for fuel return fittings.
Includes two -6 AN to -6 AN fittings.
09-0400-005 -10 Inlet Filter Cap w/ -6 AN Accessory Ports
09-0400-008 -12 Inlet Filter Cap w/ -6 AN Accessory Ports
Outlet Port End Cap Fits 400 Series Filters
Peterson's new outlet port filter end cap incorporates a -6 AN female
port in addition to the -12 AN male fitting. This allows the installation
of a fitting to supply filtered oil to valve spring spray oilers or any
accessory oiling that requires filtered oil.
09-0400-026 -12 Outlet Filter cap w/ -6AN Accessory Port
Accessory Fittings
15-1005 -10 AN nose x -10 AN port
15-1006 -12 AN nose x -10 AN port
15-1007 -16 AN nose x -10 AN port
15-1009 -10 AN port plug with 5/8-18 temp sender port
15-1011 -10 AN port plug with 1/8" NPT port
15-1015 -8 AN nose x -10 AN port
15-1030 -10 AN port plug with 1/4" NPT port
15-1020 -4 AN nose x -6 AN port
15-1003 -6 AN nose x -6 AN port
