Wide-VAC™ Single Stage Wet Sump Pump/Vacuum Pump

Peterson's Wide-Vac oil pump incorporates our race proven Wet Vac oil pump design with a wider vacuum section. This pump provides an external wet sump pump that incorporates a vacuum section which allows the engine builder to pull vacuum in the crankcase.

Left Side	Right Side
04-3800 1.2 Pressure Rotor	04-3820 1.2 Pressure Rotor
04-3802 1.4 Pressure Rotor	04-3822 1.4 Pressure Rotor

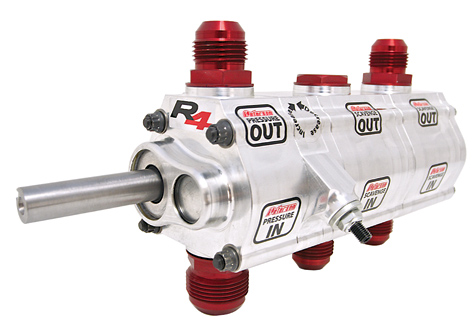

R4 Wet Sump Pumps

Our Wet Sump Pumps are built around our Patent Pending 4 lobe rotor whcih provides excellent oil pressure and flow in excess of 30 GPM on the High Volume pump for the highest need motors.

Left Side	Right Side
04-1000 Left Side Mount, Standard Pressure	04-1020 Right Side Mount, Standard Pressure
04-1002 Left Side Mount, HV Pressure	04-1022 Right Side Mount, HV Pressure
04-1004 Left Side Mount, Std Pressure, Rear Drive	04-1024 Right Side Mount, Std Pressure, Rear Drive
04-1006 Left Side Mount, HV Pressure, Rear Drive	04-1026 Right Side Mount, HV Pressure, Rear Drive

Mount Blades

Chevrolet

14-0200 Big Block Chevy, Left Side

14-0250 Big Block Chevy, Right Side

Ford

14-0450 Big Block Ford, Right Side

Mopar

14-0600 Big Block Mopar, Left Side

R4 Dry Sump Oil Pumps

1.400” Scavenge Rotors

Our 1.4" Scavenge is for sportsman type engines up to 640 cu in without any power adders. 12 - 18 in/hg possible depending on engine seal.
3 Stage - 1.2 Press 6.033"L/1.4 Press 6.233"L
4 Stage - 1.2 Press 7.748"L/1.4 Press 7.948"L
5 Stage - 1.2 Press 9.453"L/1.4 Press 9.653"L
6 Stage - 1.2 Press 11.168"L/1.4 Press 11.368"L

	3 Stage	4 Stage	5 Stage	6 Stage
Left Side
Single Return, 1.2 Pressure	04-3060	04-4060	04-5060	04-6060
Single Return, 1.4 Pressure	04-3062	04-4062	04-5062	04-6062
Single Ret, 1.2" Press,RD	04-3064	04-4064	04-5064	04-6064
Single Ret, 1.4" Press,RD	04-3066	04-4066	04-5066	04-6066
Right Side
Single Return, 1.2 Pressure	04-3070	04-4070	04-5070	04-6070
Single Return, 1.4 Pressure	04-3072	04-4072	04-5072	04-6072
Single Ret, 1.2" Press,RD	04-3074	04-4074	04-5074	04-6074
Single Ret, 1.4" Press,RD	04-3076	04-4076	04-5076	04-6076



1.800” Scavenge Rotors

The 1.8" scavenge rotors can improve vacuum numbers over the 1.4" if the room is available. The extra vacuum is especially beneficial if the engine has power adders such as a supercharger or turbo.
5 Stage - .600 Press 10.463"L/.720 Press 10.583"L/1.00 Press 10.863"L/1.2 Press 11.063"L
6 Stage - .600 Press 12.578"L/.720 Press 12.698"L/1.00 Press 12.978"L/1.2 Press 13.178"L

	5 Stage	6 Stage
Left Side
Single Return, .600 Pressure	04-5160-060	04-6160-060
Single Return, .720 Pressure	04-5160-720	04-6160-720
Single Return, 1.000" Pressure	04-5160-100	04-6160-100
Single Return, 1.200" Pressure	04-5160-120	04-6160-120
Right Side
Single Return, .600 Pressure	04-5170-060	04-6170-060
Single Return, .720 Pressure	04-5170-720	04-6170-720
Single Return, 1.000" Pressure	04-5170-100	04-6170-100
Single Return, 1.200" Pressure	04-5170-120	04-6170-120

2.400” Scavenge Rotors

2.400" scavenge are for those looking for the ultimate in vacuum on large bore engines. Works great on ProMod style motors up to 900 cu in with 5" or 5.3" bore spacing. Pump does not fit on motors with filter pad. Proven 19 in of vacuum on 855 cu in motor with this pump alone.
5 Stage - .600 Press 12.863"L/.720 Press 12.983"L/1.00 Press 13.263"L/1.2 Press 13.463"L
6 Stage - .600 Press 15.578"L/.720 Press 15.698"L/1.00 Press 15.978"L/1.2 Press 16.178"L

	5 Stage	6 Stage
Left Side
Single Return, .600 Pressure	04-5260-060	04-6260-060
Single Return, .720 Pressure	04-5260-720	04-6260-720
Single Return, 1.000" Pressure	04-5260-100	04-6260-100
Single Return, 1.200" Pressure	04-5260-120	04-6260-120
Right Side
Single Return, .600 Pressure	04-5270-060	04-6270-060
Single Return, .720 Pressure	04-5270-720	04-6270-720
Single Return, 1.000" Pressure	04-5270-100	04-6270-100
Single Return, 1.200" Pressure	04-5270-120	04-6270-120



Mount Blades

Chevrolet

14-0200 Big Block Chevy, Left Side

14-0250 Big Block Chevy, Right Side

Ford

14-0450 Big Block Ford, Right Side

Mopar

14-0600 Big Block Mopar, Left Side

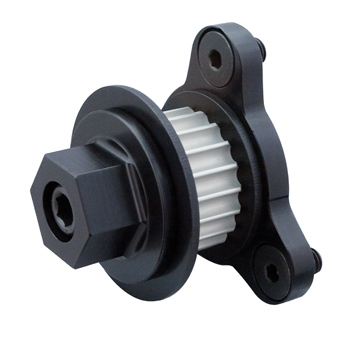

Spline Drive Sets

Peterson Spline Drive sets contain the hub and drive cap along with the appropriate hardware for mounting to the balancer.

Small Block Chevy/ATI/MSD

06-4111 3 Bolt Spline Drive Hub

Ford

06-4113 3 Bolt Spline Drive Hub
06-4114 4 Bolt Spline Drive Hub

400 Series Oil &Fuel Filter

Peterson's 400 series filters provide the best filtering available for fuel or oil. Features include anodized billet aluminum body and end caps for durability and resistance to fluid corrosion., stainless steel mesh screen and a pleated element for high flow.

45 Micron Filter - Fuel

With Bypass	Without Bypass
09-0475 -8 AN fittings	09-0482 -8AN fittings
09-3475 -8 Wiggins	09-3482 -8 Wiggin
09-0476 -10 AN fittings	09-0483 -10 AN fittings
09-3476 -10 Wiggins	09-3483 -10 Wiggins
09-0477 -12 AN fittings	09-0484 -12 AN fittings
09-3477 -12 Wiggins	09-3484 -12 Wiggins



60 Micron Filter - Fuel/Oil

With Bypass	Without Bypass
09-0450 -8 AN fittings	09-0456 -8AN fittings
09-3450 -8 Wiggins	09-3456 -8 Wiggin
09-0451 -10 AN fittings	09-0457 -10 AN fittings
09-3451 -10 Wiggins	09-3457 -10 Wiggins
09-0452 -12 AN fittings	09-0458 -12 AN fittings
09-3452 -12 Wiggins	09-3458 -12 Wiggins
09-0453 -16 AN fittings	09-0459 -16 AN fittings
09-3453 -16 Wiggins	09-3459 -16 Wiggins



75 Micron Filter - Oil

With Bypass	Without Bypass
09-0430 -8 AN fittings	09-0436 -8AN fittings
09-3430 -8 Wiggins	09-3436 -8 Wiggin
09-0431 -10 AN fittings	09-0437 -10 AN fittings
09-3431 -10 Wiggins	09-3437 -10 Wiggins
09-0432 -12 AN fittings	09-0438 -12 AN fittings
09-3432 -12 Wiggins	09-3438 -12 Wiggins
09-0433 -16 AN fittings	09-0439 -16 AN fittings
09-3433 -16 Wiggins	09-3439 -16 Wiggins
09-0426 -20 AN fittings	09-0425 -20 AN fittings
09-3424 -20 Wiggins	09-3425 -20 Wiggins



100 Micron Filter - Oil

With Bypass	Without Bypass
09-1430 -8 AN fittings	09-1436 -8AN fittings
09-4430 -8 Wiggins	09-4436 -8 Wiggin
09-1431 -10 AN fittings	09-1437 -10 AN fittings
09-4431 -10 Wiggins	09-4437 -10 Wiggins
09-1432 -12 AN fittings	09-1438 -12 AN fittings
09-4432 -12 Wiggins	09-4438 -12 Wiggins
09-1433 -16 AN fittings	09-1439 -16 AN fittings
09-4433 -16 Wiggins	09-4439 -16 Wiggins
09-1426 -20 AN fittings	09-1425 -20 AN fittings
09-4426 -20 Wiggins	09-4425 -20 Wiggins

700 Series Fuel Filter

Our small fuel filters are available as an inline or carbuerator version. These compact fuel filters feature a 60 micron reusable stainless steel screen filter. Filters are machined from billet aluminum and then red anodized for use with all types of fuel.

09-0720 -6 AN Inline Fuel Filter

09-0722 -8 AN Inline Fuel Filter

09-0701 -8 AN B-Nut Holley

09-0702 -8 AN Nose Holley

09-0714 -6 AN B-Nut Long Holley

09-0715 -6 AN Nose Long Holley

09-0711 -8 AN B-Nut Long Holley

09-0712 -8 AN Nose Long Holley

09-0751 -8 AN B-Nut Long Demon/Braswell

09-0752 -8 AN B-Nut Long 3/4-16 Braswell

Standard Oil Tanks

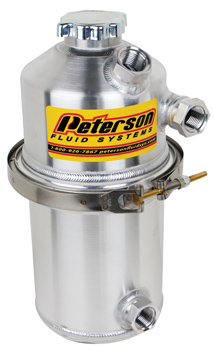

1.5 Gallon - 15.5” tall x 6” dia.

08-0003 1.5 Gallon Single scavenge inlet, -12 AN Female Fittings.
08-0004 1.5 Gallon Dual scavenge inlet, -12 An Female Fittings.
08-0023 1.5 Gallon Single scavenge inlet, -12 An Male Fittings.
08-0024 1.5 Gallon Dual scavenge inlet , -12 An Male Fittings.

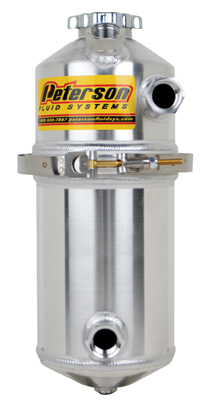

2 Gallon - 19.5” tall x 6” dia.

08-0005 2 Gallon Single scavenge inlet, -12 AN Female Fittings.
08-0006 2 Gallon Dual scavenge inlet, -12 An Female Fittings.
08-0025 2 Gallon Single scavenge inlet, -12 An Male Fittings.
08-0026 2 Gallon Dual scavenge inlet , -12 An Male Fittings.

Special Oil Tanks

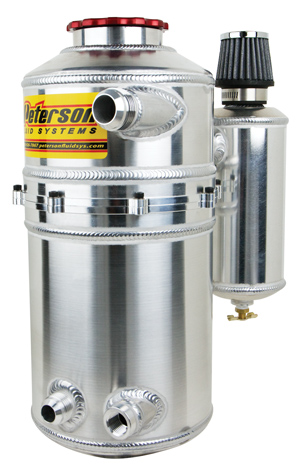

7" Drag Tank - 16" tall x 7" dia

Our 7" drag tank has been proven by Kurt and Warren Johnson to provide excellent oil control and absolutely no blowing oil. It features our race proven tank design with an integrated NHRA legal catch can or (2) -12 AN fittings for an external can. Also includes a heater bung for an immersion style heater and our large billet aluminum cap. Uses 08-0102 brackets. 16" over all height

08-0783 7" Drag Tank Single Return (2) -12 AN Male Breathers

08-0783-CC 7" Drag Tank Single Return w/Catch Can

08-0784 7" Drag Tank Dual Return (2) -12 AN Male Breathers

08-0784-CC 7" Drag Tank Dual Return w/Catch Can

1 1/2 Gallon "Flowerpot" Drag Tank - 10.75" tall x 9" dia

Peterson's low profile drag tank was created fro nostalgia dragsters and altereds. It offers the performance and oil capacity of our standard 1 1/2 gallon tanks but in a shorter and a slightly wider package for applications where height is a problem.

08-0889 1 1/2 Gallon Single Scavenge

08-0890 1 1/2 Gallon Dual Scavenge

Custom Oil Tanks

Peterson can produce oil tanks for your special application. We have produced tanks for racing teams around the world, as well as, OEMs, supercar builders, military, industrial companies, and aerospace companies. We work off of your drawings while also consulting you on what would be best for oil control and supply.

Remote Breather Cans

Peterson remote breather cans with internal baffeling are excellent when breathing your dry sump tank to atmosphere or running a vacuum system.

08-0400 Peterson Spun Aluminum Complete with 2 ea. -12 AN female ports and -6 AN drain plug. Use oil tank fittings for hose attatchment.

08-0410 Peterson Spun Aluminum Complete with 1 ea. -12 AN male fitting for oil tank breather and 1 each -8 AN male fitting to breath rear end. Complete with quick drain valve and mounting clamp. Internally baffled.
