Spline Drive Hubs

Our spline drive hubs feature a strong, easy to use alternative to the standard drive mandrels. They eliminate the long crank bolt that can cause issues. We also have several special application hubs that can make setting up a drive much easier than what was previously available.

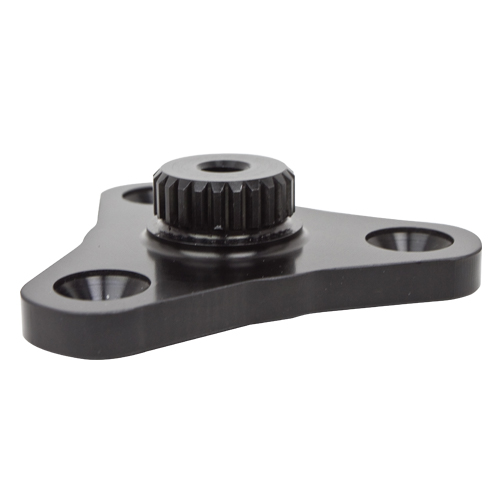

Standard Hubs-Available in short and long versions.

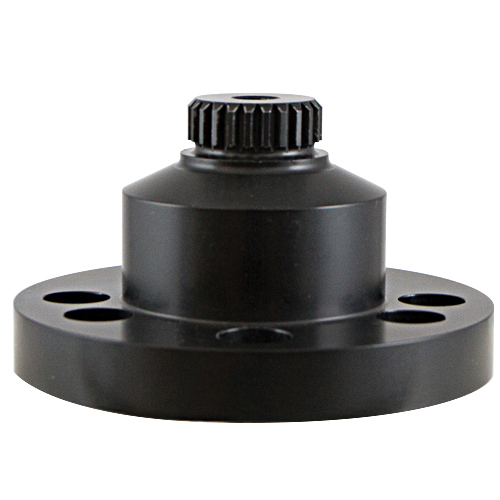

Big Block Ford Hub-Features both 3 and 4 bolt patterns. Comes with adapter rings to fit all popular balancers.

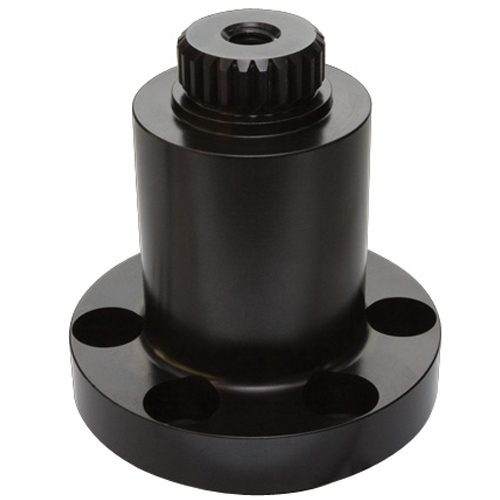

Blower Hub-Fits inside all popular Chrysler style 6 bolt blower drive pulleys.

Specifications
Part Numbers
Accessories

Features

6061 T6 billet aluminum

Hard coat anodizing

Works with all Peterson Spline Drive components

Available in short and long.

Specifications

Standard Drive Hubs

Part #	Height	Bolt Circle	Reg Dia	Reg Depth
Small Block Chevy
06-4111-001	1.052"	3.200"	1.820"	.080"
06-xxxx	SBC Long Spline Drive Hub
Big Block Chevy
06-4112-001	1.052"	3.200"	2.277"	.080"
06-xxxx	BBC Long Spline Drive Hub
Small Block Ford
3 Bolt
06-4113-001	1.052"	3.300"	2.277"	.080"
06-xxxx	SBF Long Spline Drive Hub
4 Bolt
06-4114-001	1.328"	3.300"	2.177"	.356"

Big Block Ford Hub

Part #	Height	Bolt Circle	Reg Dia	Reg Depth
06-4134	2.500"	3.300"/2.771"	NA	NA

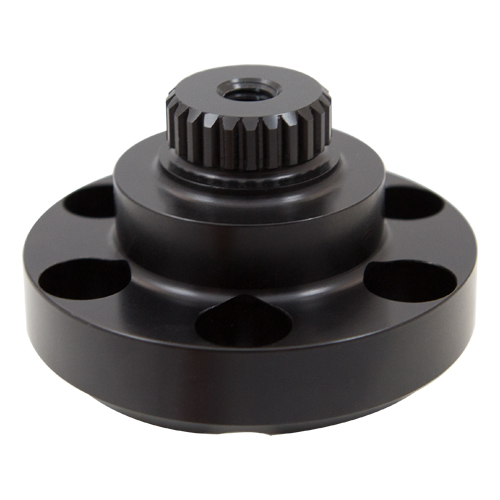

Chrysler 6 Bolt Hub

Part #	Height	Bolt Circle	Reg Dia	Reg Depth
06-4116-001	3.800"	2.75"	2.00"	.100"
06-4118-001	xxxx"	2.75"	2.00"	.100"

Part Numbers

Standard Drive Hubs

Part #	Description
Small Block Chevy
06-4111-001	SBC Short Spline Drive Hub
06-xxxx	SBC Long Spline Drive Hub
Big Block Chevy
06-4112-001	BBC Short Spline Drive Hub
06-xxxx	BBC Long Spline Drive Hub
Small Block Ford
06-4113-001	SBF Short Spline Drive Hub
06-xxxx	SBF Long Spline Drive Hub

Big Block Ford Hub

Part #	Description
06-4134	BBF Spline Drive Hub

Chrysler 6 Bolt

Part #	Description
06-4116-001	Chrysler 6 Bolt Blower Spline Drive Hub
06-4118-001	Chrysler 6 Bolt Short Spline Drive Hub

Accessories

Hub and Cap Guide Washers

Part #	Description
06-0711	2.250 dia fits 18-21 HTD and 14-17 Gilmer
06-0712	2.750 dia fits 22-25 HTD and 18-21 Gilmer
06-0713	3.250 dia fits 24-26 Gilmer
06-0714	3.500 dia fits 33 HTD

Stack Adapters

Part #	Description
06-0720	Includes 2.250" guide washer, fits 18-21 HTD and 14-17 Gilmer
06-0721	Includes 2.750" guide washer, fits 22-25 HTD and 18-21 Gilmer
06-0722	Includes 3.250" guide washer, fits 24-26 Gilmer
06-0723	Includes 3.500" guide washer, fits 33 HTD
