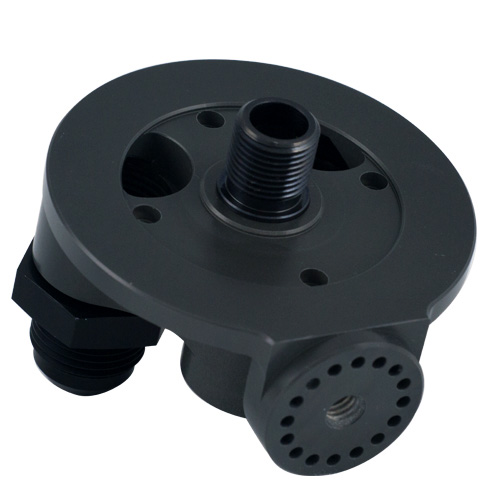

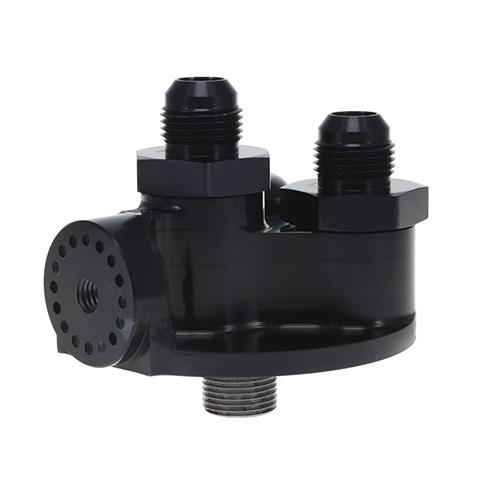

Small Filter Remote Mount Small Filter Remote Top Small Filter Remote Bottom

Filters Small Remote Mount

Machined from billet 6061-T6 aluminum and black anodized for durability. Ports are machined for maximum flow and feature a -12 AN Port thread. A 1/8" NPT port is machined into the side of the mount for a temp guage. Mounts comes with (2) port fittings and (1) plug.

Features

Part Numbers

13/16"-16 Thread - Chevrolet style

Part # Fittings
09-1390 -10 AN Fittings
09-1391 -12 AN Fittings

3/4"-16 Thread - Ford Style

Part # Fittings
09-1392 -10 AN Fittings
09-1393 -12 AN Fittings

System 1 Style

Part # Fittings
09-1398 -10 AN Fittings
09-1399 -12 AN Fittings

Accessories

Mount Brackets

Part # Description
Tube Mounts
09-1590 Fits 1 1/4" Tube
09-1591 Fits 1 3/8" Tube
09-1592 Fits 1 1/2" Tube
09-1593 Fits 1 3/4" Tube
Firewall Mount
09-1584 Large Filter Mount Firewall Mount
Tank Strap Mount
08-2206 6" Tank Strap Mount
08-2207 7" Tank Strap Mount
