Spline Drive Kits

Our spline drive kits feature a strong, easy to use alternative to the standard drive mandrels. They eliminate the long crank bolt that can cause issues. We also have several special application hubs that can make setting up a drive much easier than what was previously available.

Specifications
Part Numbers
Accessories

Features

6061 T6 billet aluminum

Hard coat anodizing

Smooth cap or cap with nut.

Works with all Peterson Spline Drive components

Includes all hardware to mount to balancer

Specifications

Standard Drive Hubs

Part #	Bolt Circle	Reg Dia	Reg Depth
Small Block Chevy
06-4111	3.200"	1.820"	.080"
Big Block Chevy
06-4112	3.200"	2.277"	.080"
Small Block Ford
3 Bolt
06-4113	3.300"	2.277"	.080"
4 Bolt
06-4114	3.300"	2.177"	.356"

Part Numbers

Small Block Chevy/ATI/MSD

Part #	Description

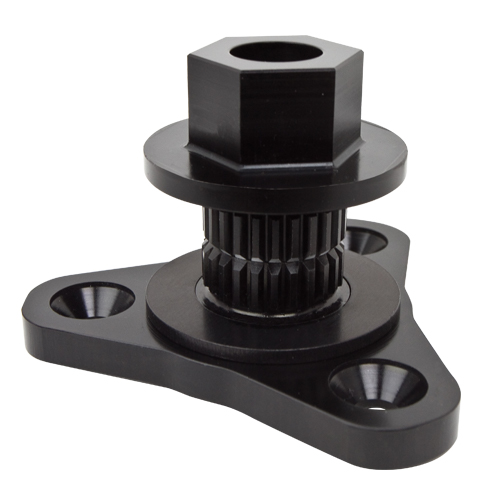

06-4111	3 Bolt SBC Spline Drive Hub

Big Block Chevy/ATI/MSD

Part #	Description
06-4112	3 Bolt BBC Spline Drive Hub

Ford

Part #	Description
06-4113	3 Bolt SBF Spline Drive Hub
06-4114	4 Bolt SBF Spline Drive Hub

Accessories

Hub and Cap Guide Washers

Part #	Description
06-0711	2.250 dia fits 18-21 HTD and 14-17 Gilmer
06-0712	2.750 dia fits 22-25 HTD and 18-21 Gilmer
06-0713	3.250 dia fits 24-26 Gilmer
06-0714	3.500 dia fits 33 HTD

Stack Adapters

Part #	Description
06-0720	Includes 2.250" guide washer, fits 18-21 HTD and 14-17 Gilmer
06-0721	Includes 2.750" guide washer, fits 22-25 HTD and 18-21 Gilmer
06-0722	Includes 3.250" guide washer, fits 24-26 Gilmer
06-0723	Includes 3.500" guide washer, fits 33 HTD
