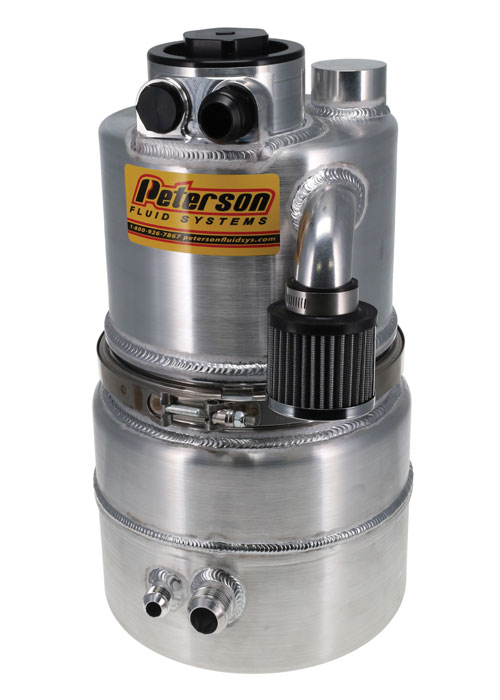

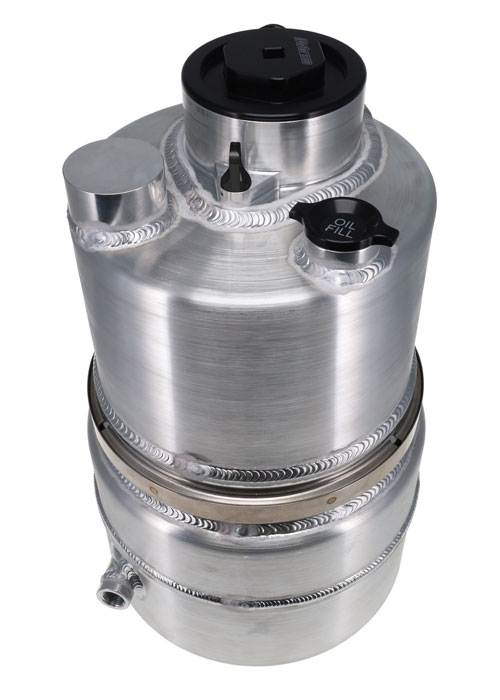

Dirt Late Model Oil Tank - Fat Boy

When chassis space is limited, and more oil capacity is required from engine builders, look to the new Fat Boy Dirt Late Model oil tank. With a lower profile design and all the standard features of our race proven DLM tanks, you’ll get a tank that is 18.62” tall and has a 5-gallon capacity.

Features

5 Gallon capacity
All Aluminum construction
Scavenge oil return filter
Tank heater bung
Oil System Primer Fitting
Integrated tank vent (no need for catch can)
Single or dual oil return capable
Dip stick
3” shorter than current 5 gallon DLM tank
Take apart design for easy cleaning

Specifications

Height: 18.62" / 47.29cm
Diameter: 10.5" / 26.67cm

Part Numbers

Part #	Description
08-9019	5 Gallon Oil Tank Single Scavenge Inlet, -12 AN Female Fittings

Accessories

Brackets

Part #	Description
08-2105	10.5" Flat Panel Mount Bracket Set
08-2108 *NEW!*	9" / 10.5" Tube Mount (1.5") Bracket Set

Heaters

Part #	Description
08-0300	300 Watt Immersion Heater
08-0301	300 Watt 2"x15" Wrap Around Heater
08-0302	400 Watt 4"x10" Wrap Around Heater
08-1300	300 Watt Immersion Heater 220 Volt
08-1301	300 Watt 2"x15" Wrap Around Heater 220/240 Volt
08-1302	400 Watt 4"x10" Wrap Around Heater 220/240 Volt

Fittings

Part #	Description
08-0501	-10 AN Male x -12 AN Port
08-0502	-12 AN Male x -12 AN Port
08-0503	-16 AN Male x -12 AN Port
08-0504	-6 AN Port Plug (Drain Plug)
