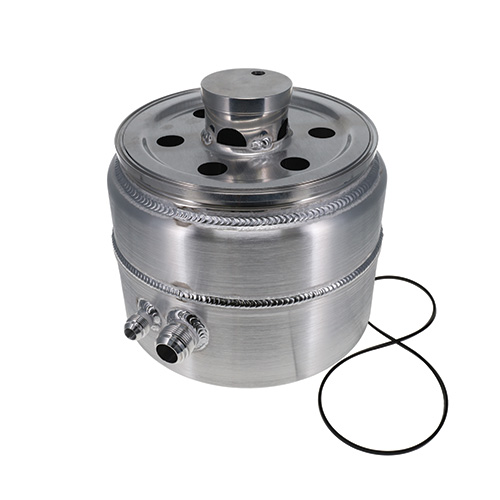

Maximize oil capacity with existing equipment in space restricted locations using this retrofit kit. Convert an existing Peterson 4 or 5 gallon Dirt Late Model (DLM) oil tank into the new “Fat Boy” style tank. Features include new bottom section, lower baffle assembly and tank gasket. Mounting brackets are sold separately.
Height: 18.62" / 47.29cm (When assembled)
Diameter: 10.5" / 26.67cm (Bottom when assembled)
| Part # | Description |
|---|---|
| 08-9099 NEW! | DLM Retrofit Kit, -16 AN Oil Pickup Fitting |
| 08-9099-20 NEW! | DLM Retrofit Kit, -20 AN Oil Pickup Fitting |
| Part # | Description |
|---|---|
| 08-2105 | 10.5" Flat Panel Mount Bracket Set |
| 08-2108 NEW! | 9" / 10.5" Tube Mount (1.5") Bracket Set |
| Part # | Description |
|---|---|
| 08-0300 | 300 Watt Immersion Heater |
| 08-0301 | 300 Watt 2"x15" Wrap Around Heater |
| 08-0302 | 400 Watt 4"x10" Wrap Around Heater |
| 08-1300 | 300 Watt Immersion Heater 220 Volt |
| 08-1301 | 300 Watt 2"x15" Wrap Around Heater 220/240 Volt |
| 08-1302 | 400 Watt 4"x10" Wrap Around Heater 220/240 Volt |
| Part # | Description |
|---|---|
| 08-0501 | -10 AN Male x -12 AN Port |
| 08-0502 | -12 AN Male x -12 AN Port |
| 08-0503 | -16 AN Male x -12 AN Port |
| 08-0504 | -6 AN Port Plug (Drain Plug) |
