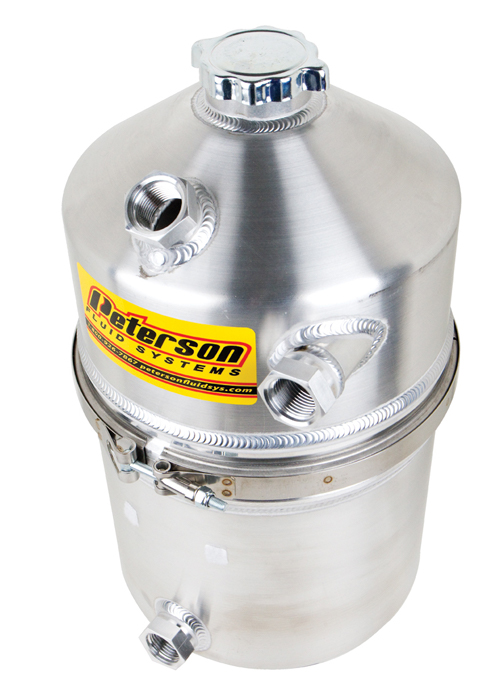

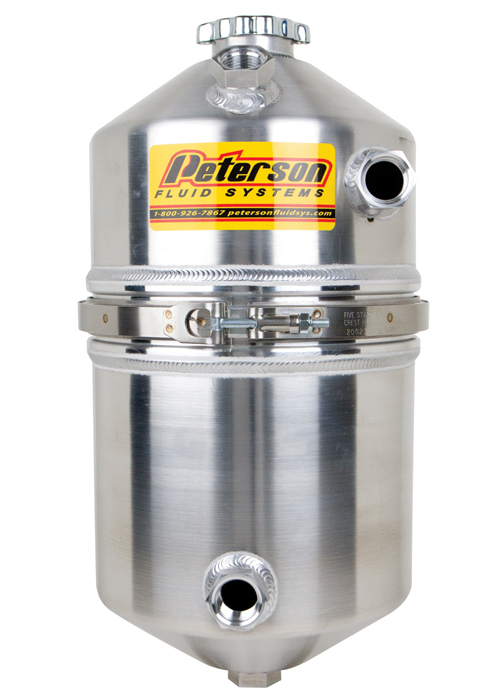

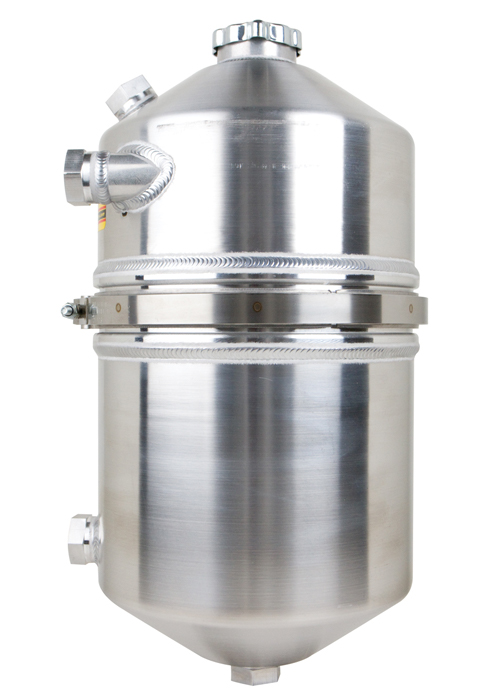

4 Gallon Oil Tank

Peterson oil tanks are the leader in tank technology. Manufactured using aircraft quality components, internal baffling provides excellent deaeration of the scavenge oil while maintaining a tall column of oil over the pickup. The tanks disassemble easily and the tank tops can rotate in relation to the bottoms for ease in fitting placement.

Features

All Aluminum construction for light weight

Built using high quality spinnings

Hand tig welded and pressure tested

Fully baffled inside for oil and air control

Heater bung available

Specifications

Height: 19" / 48.26cm
Diameter: 9" / 22.86cm

Part Numbers

Part #	Description
08-0011	4 Gallon Oil Tank Single Scavenge Inlet
08-0012	4 Gallon Oil Tank Dual Scavenge Inlet

Accessories

Brackets

Part #	Description
08-0101	9" Flat Mount Tank Bracket Set
08-0106	9" Clamp Style Tank Bracket Set 1 1/2" Tube

Heaters

Part #	Description
08-0300	300 Watt Immersion Heater
08-0301	300 Watt 2"x15" Wrap Around Heater
08-0302	400 Watt 4"x10" Wrap Around Heater
08-1300	300 Watt Immersion Heater 220 Volt
08-1301	300 Watt 2"x15" Wrap Around Heater 220/240 Volt
08-1302	400 Watt 4"x10" Wrap Around Heater 220/240 Volt

Fittings

Part #	Description
08-0501	-10 AN Male x -12 AN Port
08-0502	-12 AN Male x -12 AN Port
08-0503	-16 AN Male x -12 AN Port
08-0505	-12 AN Port Plug (Drain Plug)
