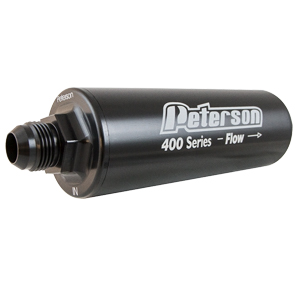

Filters 400 Series

Peterson Fluid systems 400 series filters provide the best filtering available for fuel or oil. Features include anodized billet body and caps for durability and resistance to fluid corrosion, stainless steel mesh element for corrosion resistance, and pleated element for high flow. Available in -8 thru -20 AN, as well as, a line of accessory end caps to facilitate the use of temperature probes, accessory oiling and fuel return lines. Filter elements available in 45, 60, 75 an 100 micron stainless or 10/20 micron cellulose, with or without bypass.

Features

Specifications

Fitting Length Diameter
-8 9.214" 2.475"
-10 9.500" 2.475"
-12 9.628" 2.475"
-16 9.780" 2.475"
-20 9.816" 2.475"

Part Numbers

45 Micron - Fuel

Part # Description
with Bypass
09-0475 -8 AN Fittings
09-0476 -10 AN Fittings
09-0477 -12 AN Fittings
without Bypass
09-0482 -8 AN Fittings
09-0483 -10 AN Fittings
09-0484 -12 AN Fittings

60 Micron - Fuel/Oil

Part # Description
with Bypass
09-0450 -8 AN Fittings
09-0451 -10 AN Fittings
09-0452 -12 AN Fittings
09-0453 -16 AN Fittings
without Bypass
09-0456 -8 AN Fittings
09-0457 -10 AN Fittings
09-0458 -12 AN Fittings
09-0459 -16 AN Fittings

75 Micron - Oil

Part # Description
with Bypass
09-0430 -8 AN Fittings
09-0431 -10 AN Fittings
09-0432 -12 AN Fittings
09-0433 -16 AN Fittings
09-0426 -20 AN Fittings
without Bypass
09-0436 -8 AN Fittings
09-0437 -10 AN Fittings
09-0438 -12 AN Fittings
09-0439 -16 AN Fittings
09-0425 -20 AN Fittings

100 Micron - Oil

Part # Description
with Bypass
09-1430 -8 AN Fittings
09-1431 -10 AN Fittings
09-1432 -12 AN Fittings
09-1433 -16 AN Fittings
09-1426 -20 AN Fittings
without Bypass
09-1436 -8 AN Fittings
09-1437 -10 AN Fittings
09-1438 -12 AN Fittings
09-1439 -16 AN Fittings
09-1425 -20 AN Fittings

Accessories

Mount Brackets

Part # Description
09-0490 Fits 1 1/4" tube. 2 pieces
09-0491 Fits 1 3/8" tube. 2 pieces
09-0492 Fits 1 1/2" tube. 2 pieces
09-0493 Fits 1 3/4" tube. 2 pieces
09-0494 Firewall Mount 2 pieces
09-0495 Fits 1 1/4" tube. 2 pieces
09-0496 Fits 1 1/4" tube. 2 pieces

Rebuild Kits

Part # Description
09-0489 Oil & Methanol Rebuild Kit
09-0486 Viton Rebuild Kit
09-2489 Unleaded Rebuild Kit

Retention Spring

Part # Description
09-0400-014 400 Series Filter Retention Spring
