Modular Billet Manifolds

Our redesigned billet y-manifolds feature a modular design with replaceable fittings. Available in several stock configurations, these can also be customised to fit your exact needs. They still feature the same great flow and compact design of the originals.

Features

All Aluminum construction for light weight

Anodized for compatibility with most fluids

Machined for high flow

Available in 3, 4 and 5 way

Integral mounting pad

Specifications

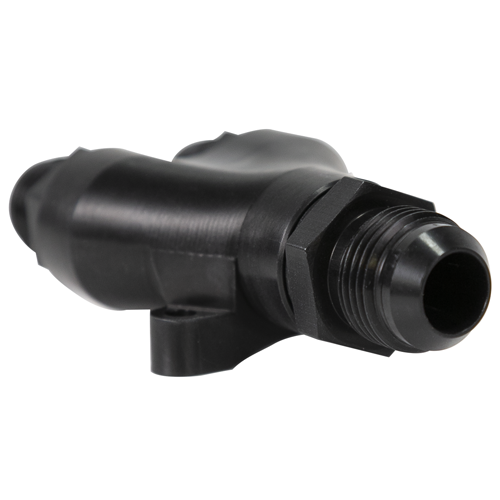

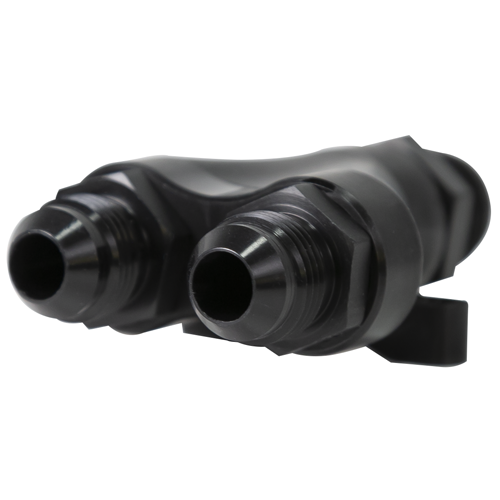

3 Way Manifold

Part #	Length	Width	Height	Mount C to C
10-1030				1.563"
10-1031	2.750"	1.750"	.625"	1.563"
10-1032				1.563"
10-1033	3.188"	2.188"	.875"	1.563"

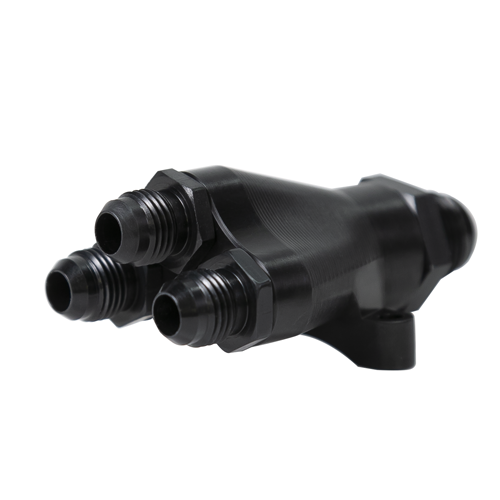

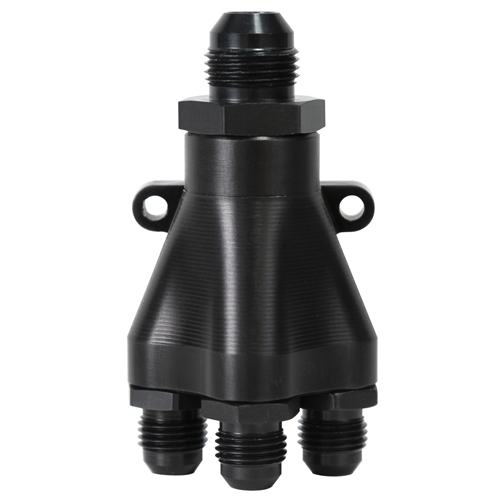

4 Way Manifold

Part #	Length	Width	Height	Mount C to C
10-1034	2.750"	1.938"	1.250"	1.563"
10-1040	2.750"	1.938"	1.250"	1.563"
10-1041				1.563"
10-1046	2.875"	1.938"	1.250"	1.563"

5 Way Manifold

Part #	Length	Width	Height	Mount C to C
10-1060	2.938"	1.938"	1.500"	1.563"
10-1061	2.938"	1.938"	1.500"	1.563"
10-1070	3.375"	1.938"	2.250"	1.563"
10-1071	3.375"	1.938"	2.250"	1.563"
10-1080	3.313"	1.938"	2.250"	1.563"
10-1081	3.313"	1.938"	2.250"	1.563"

Part Numbers

3 Way Manifold

Part #	Description
10-1030	Manifold 6 AN x 6 AN x 6 AN
10-1031	Manifold 8 AN x 6 AN x 6 AN
10-1032	Manifold 8 AN x 8 AN x 8 AN
10-1033	Manifold 10 AN x 8 AN x 8 AN

4 Way Manifold

Part #	Description
10-1040	Manifold 6 AN x 6 AN x 6 AN x 6 AN
10-1041	Manifold 8 AN x 6 AN x 6 AN x 6 AN
10-1042	Manifold 10 AN x 6 AN x 6 AN x 6 AN
10-1046	Manifold 6 AN x 4 AN x 4 AN x 4 AN

5 Way Manifold

Part #	Description
10-1060	Manifold 6 AN x 4 AN x 4 AN x 4 AN x 4 AN
10-1061	Manifold 8 AN x 4 AN x 4 AN x 4 AN x 4 AN
10-1070	Manifold 10 AN x 8 AN x 8 AN x 8 AN x 8 AN
10-1071	Manifold 10 AN x 6 AN x 6 AN x 6 AN x 6 AN
10-1080	Manifold 12 AN x 8 AN x 8 AN x 8 AN x 8 AN
10-1081	Manifold 12 AN x 6 AN x 6 AN x 6 AN x 6 AN
