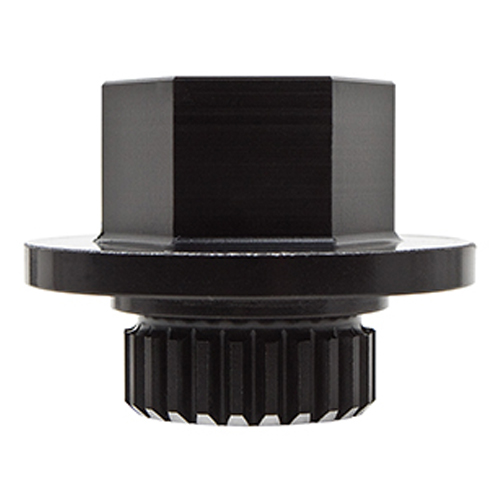

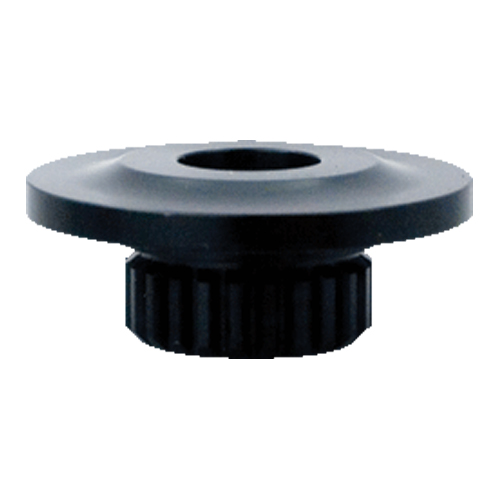

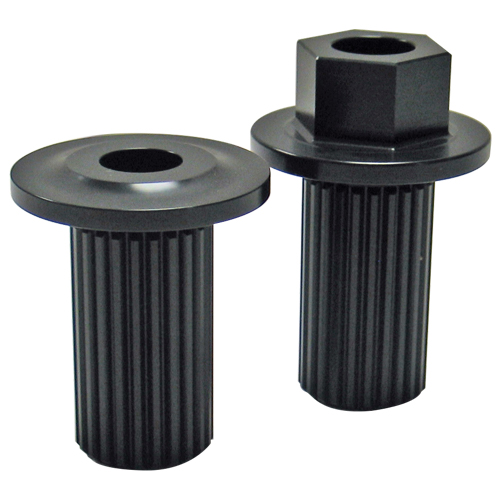

Alt title of image Spline cap with Hex Spline cap with smooth top Spline Cap with long spline section

Spline Drive Caps

Our spline drive caps are available in a long and short version to provide the right amount of mandrel for the pulley stack you need. The caps are available with a large nut to assist in turning over the motor or a smooth top to give the most clearance for tight areas.

Features

Specifications

Smooth Cap

Overall Height: .887"
Diameter: 2.200"


Nut Cap

Overall Height: 1.602"
Hex Height:.780"
Hex Width:1.250"
Diameter: 2.200"

Part Numbers

Short

Part # Description
Smooth Cap
06-0726 2.250 OD
06-0727 2.750 OD
06-0728 3.250 OD
06-0729 3.500 OD
Nut Cap
06-0730 2.250 OD
06-0731 2.750 OD
06-0732 3.250 OD
06-0733 3.500 OD

Long

Part # Description
Smooth Cap
06-0770 2.250 OD
06-0771 2.750 OD
06-0772 3.250 OD
06-0773 3.500 OD
Nut Cap
06-0760 2.250 OD
06-0761 2.750 OD
06-0762 3.250 OD
06-0763 3.500 OD

Accessories

Hub and Cap Guide Washers

Part # Description
06-0711 2.250 dia fits 18-21 HTD and 14-17 Gilmer
06-0712 2.750 dia fits 22-25 HTD and 18-21 Gilmer
06-0713 3.250 dia fits 24-26 Gilmer
06-0714 3.500 dia fits 33 HTD
