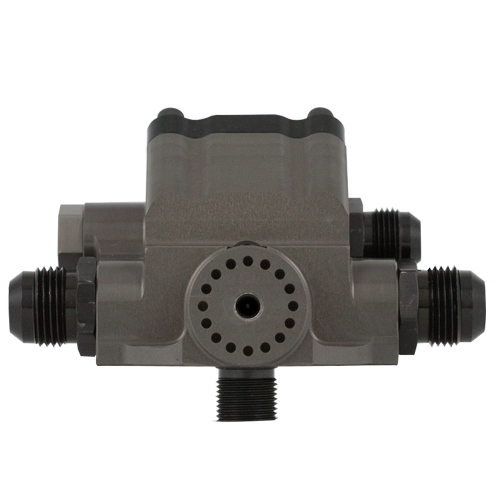

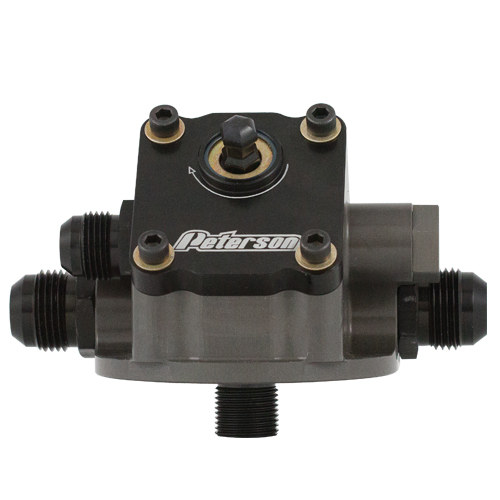

Filters Small Primer Remote Mount

Peterson's primer filter mount allows you to use a standard drill to prime your engine easily. Utilizing our unique R4 rotor design, this small pump can give you 20 psi of oil pressure in as little as 10 seconds to make sure all your bearing surfaces are properly oiled cutting down on engine wear. Features billet aluminum construction, AN port fittings and tube or firewall mount.

Features

Part Numbers

Chevrolet Post

Part # Description
Left to Right Flow
09-1501 -10 AN Fittings
09-1502 -12 AN Fittings
Right to Left
09-1503 -10 AN Fittings
09-1504 -12 AN Fittings

Ford Post

Part # Description
Left to Right Flow
09-1511 -10 AN Fittings
09-1512 -12 AN Fittings
Right to Left Flow
09-1513 -10 AN Fittings
09-1514 -12 AN Fittings

System 1 Post

Part # Description
Left to Right Flow
09-1521 -10 AN Fittings
09-1522 -12 AN Fittings
Right to Left
09-1523 -10 AN Fittings
09-1524 -12 AN Fittings

Accessories

Mount Brackets

Part # Description
Tube Mounts
09-1590 Fits 1 1/4" Tube
09-1591 Fits 1 3/8" Tube
09-1592 Fits 1 1/2" Tube
09-1595 Fits 1 5/8" Tube
09-1593 Fits 1 3/4" Tube
Firewall Mount
09-1584 Small Filter Mount Firewall Mount
Tank Strap Mount
08-2206 6" Tank Strap Mount
08-2207 7" Tank Strap Mount
