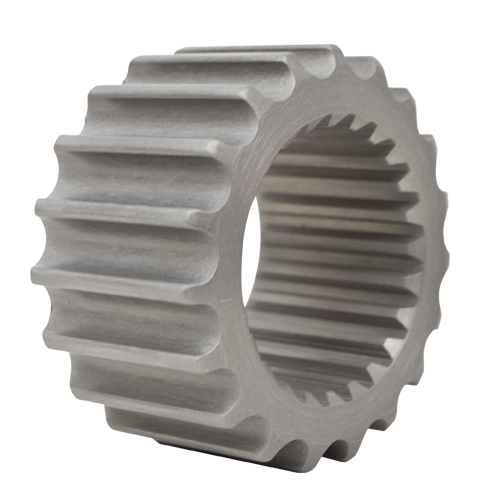

Spline Gilmer and HTD Pulleys
Our spline drive pulleys feature the same great build quality as our popular standard mandrel pulleys. CNC machined from billet aluminum these pulleys are hard coat anodized for durability and long life.
Our spline drive pulleys feature the same great build quality as our popular standard mandrel pulleys. CNC machined from billet aluminum these pulleys are hard coat anodized for durability and long life.
| Part # | Teeth | Width | OD | ID |
|---|---|---|---|---|
| .500" Wide | ||||
| 06-0204 | 14 | .560" | 1.643" | 1.250" Spline |
| 06-0206 | 16 | .560" | 1.881" | 1.250" Spline |
| 06-0208 | 18 | .560" | 2.121" | 1.250" Spline |
| 1" Wide | ||||
| 06-0214 | 14 | 1.020" | 1.643" | 1.250" Spline |
| 06-0216 | 16 | 1.020" | 1.881" | 1.250" Spline |
| 06-0218 | 18 | 1.020" | 2.121" | 1.250" Spline |
| 06-0219 | 19 | 1.020" | 2.241" | 1.250" Spline |
| 06-0221 | 21 | 1.020" | 2.480" | 1.250" Spline |
| 06-0224 | 24 | 1.020" | 2.920" | 1.250" Spline |
| 06-0226 | 26 | 1.020" | 3.077" | 1.250" Spline |
| Part # | Teeth | Width | OD | ID |
|---|---|---|---|---|
| 1" Wide | ||||
| 06-1218 | 18 | 1.020" | 1.751" | 1.250" Spline |
| 06-1219 | 19 | 1.020" | 1.910" | 1.250" Spline |
| 06-1220 | 20 | 1.020" | 1.951" | 1.250" Spline |
| 06-1221 | 21 | 1.020" | 2.051" | 1.250" Spline |
| 06-1222 | 22 | 1.020" | 2.151" | 1.250" Spline |
| 06-1223 | 23 | 1.020" | 2.252" | 1.250" Spline |
| 06-1225 | 25 | 1.020" | 2.452" | 1.250" Spline |
| 06-1233 | 33 | 1.020" | 3.254" | 1.250" Spline |
| 1.25" Wide | ||||
| 06-1218-W | 18 | 1.250" | 1.751" | 1.250" Spline |
| 06-1219-W | 19 | 1.250" | 1.910" | 1.250" Spline |
| 06-1220-W | 20 | 1.250" | 1.951" | 1.250" Spline |
| 06-1221-W | 21 | 1.250" | 2.051" | 1.250" Spline |
| 06-1222-W | 22 | 1.250" | 2.151" | 1.250" Spline |
| 06-1223-W | 23 | 1.250" | 2.252" | 1.250" Spline |
| 06-1225-W | 25 | 1.250" | 2.452" | 1.250" Spline |
| 06-1233-W | 33 | 1.250" | 3.254" | 1.250" Spline |
| Part # | Description |
|---|---|
| .560" Wide | |
| 06-0204 | 14 tooth .560" Wide |
| 06-0206 | 16 tooth .560" Wide |
| 06-0208 | 18 tooth .560" Wide |
| 1" Wide | |
| 06-0214 | 14 tooth 1" Wide |
| 06-0216 | 16 tooth 1" Wide |
| 06-0218 | 18 tooth 1" Wide |
| 06-0219 | 19 tooth 1" Wide |
| 06-0221 | 21 tooth 1" Wide |
| 06-0224 | 24 tooth 1" Wide |
| 06-0226 | 26 tooth 1" Wide |
| Part # | Description |
|---|---|
| 1" Wide | |
| 06-1218 | 18 tooth 1" Wide |
| 06-1219 | 19 tooth 1" Wide |
| 06-1220 | 20 tooth 1" Wide |
| 06-1221 | 21 tooth 1" Wide |
| 06-1222 | 22 tooth 1" Wide |
| 06-1223 | 23 tooth 1" Wide |
| 06-1225 | 25 tooth 1" Wide |
| 06-1233 | 33 tooth 1" Wide |
| 1.25" Wide | |
| 06-1218-125 | 18 tooth 1.25" Wide |
| 06-1219-125 | 19 tooth 1.25" Wide |
| 06-1220-125 | 20 tooth 1.25" Wide |
| 06-1221-125 | 21 tooth 1.25" Wide |
| 06-1222-125 | 22 tooth 1.25" Wide |
| 06-1223-125 | 23 tooth 1.25" Wide |
| 06-1225-125 | 25 tooth 1.25" Wide |
| 06-1233-125 | 33 tooth 1.25" Wide |
