Standard Drive 1" Mandrel Pulleys

Peterson's pulleys for the standard 1" mandrel are cnc machined and then hard coat anodized for durability and long life. Pulleys feature a 1/8" key way for a positive drive and are availble in a Gimer or HTD tooth profile.

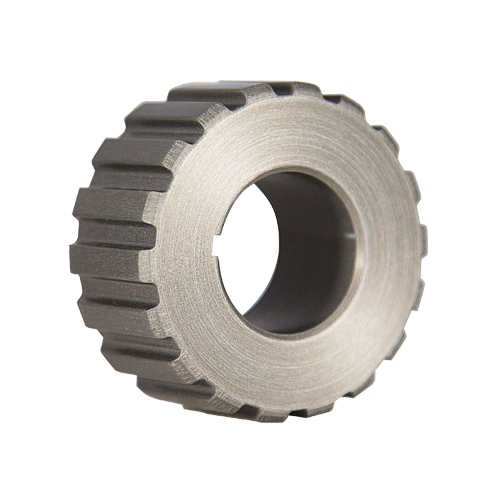

- Gilmer Pulleys
Gilmer pulleys feature a square tooth profile. Available in .560" and 1.020" widths.

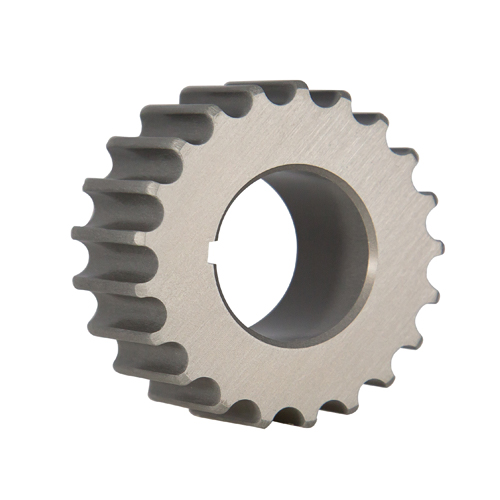

- HTD Pulleys
HTD Pulleys feature a 8mm pitch round tooth profile. Available in a 1.020" width.

Specifications
Part Numbers

Features

6061 T6 billet aluminum

Hard coat anodized for durability

CNC machined for precision

1" Bore

1/8" Keyway

Specifications

Gilmer

Part #	Teeth	Width	OD	ID
05-0204	14	.560"	1.643"	1.003"
05-0206	16	.560"	1.881"	1.003"
05-0207	17	.560"	2.001"	1.003"
05-0208	18	.560"	2.121"	1.003"
05-0214	14	1.020"	1.643"	1.003"
05-0216	16	1.020"	1.881"	1.003"
05-0217	17	1.020"	2.001"	1.003"
05-0218	18	1.020"	2.121"	1.003"
05-0219	19	1.020"	2.241"	1.003"
05-0220	20	1.020"	2.361"	1.003"
05-0221	21	1.020"	2.480"	1.003"
05-0224	24	1.020"	2.839"	1.003"
05-0226	26	1.020"	3.077"	1.003"

HTD Pulleys

Part #	Teeth	Width	OD	ID
05-1218	18	1.020"	1.751"	1.003"
05-1219	19	1.020"	1.851"	1.003"
05-1220	20	1.020"	1.951"	1.003"
05-1221	21	1.020"	2.051"	1.003"
05-1222	22	1.020"	2.151"	1.003"
05-1223	23	1.020"	2.252"	1.003"
05-1225	25	1.020"	2.452"	1.003"
05-1233	33	1.020"	3.254"	1.003"

Part Numbers

Gilmer

Part #	Description
.560" Wide
05-0204	14 Tooth
05-0206	16 Tooth
05-0207	17 Tooth
05-0208	18 Tooth
1.020" Wide
05-0214	14 Tooth
05-0216	16 Tooth
05-0217	17 Tooth
05-0218	18 Tooth
05-0219	19 Tooth
05-0220	20 Tooth
05-0221	21 Tooth
05-0224	24 Tooth
05-0226	26 Tooth

HTD Pulleys

Part #	Description
1.020" Wide
05-1218	18 Tooth
05-1219	19 Tooth
05-1220	20 Tooth
05-1221	21 Tooth
05-1222	22 Tooth
05-1223	23 Tooth
05-1225	25 Tooth
05-1233	33 Tooth
