Dirt Late Model
Oil Tank

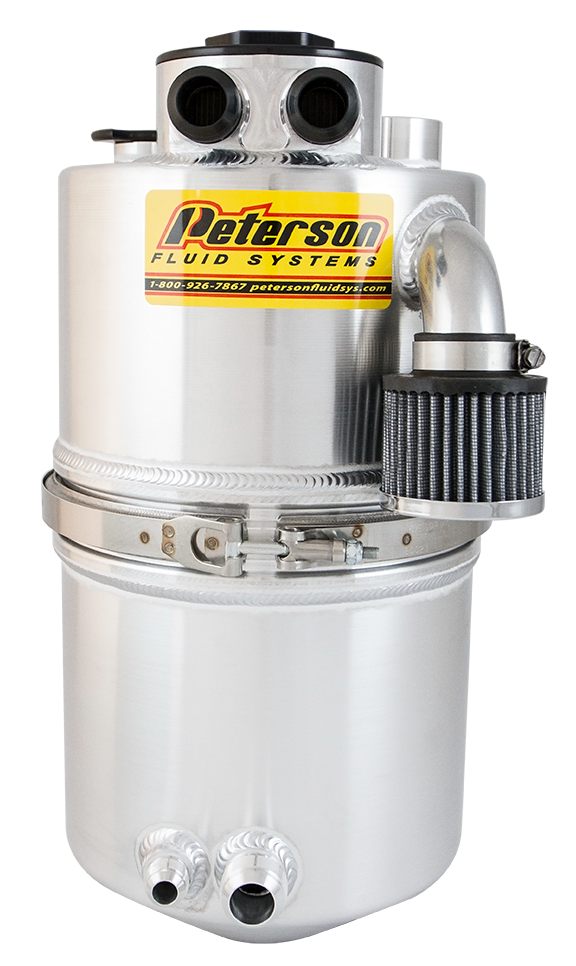

Our filter tank for Dirt Late Models features a high flow spin on filter inside the cap that makes checking your return filter simple. A built in dipstick makes checking your oil level easy and radiused full flow fittings eliminates back pressure on the return lines.

Features

All Aluminum construction for light weight

Built using high quality spinnings

Hand tig welded and pressure tested

Fully baffled inside for oil and air control

Built in dipstick

Integral cleanable return oil filter

Heater bung available

Specifications

4 Gallon

Height: 20" / 50.8cm
Diameter: 9" / 22.86cm

5 Gallon

Height: 21.750" / 55.24cm
Diameter: 9" / 22.86cm

Part Numbers

Part #	Description
08-9016	4 Gallon Filter Tank
08-9018	5 Gallon Filter Tank

Accessories

Mounts

Part #	Description
08-0101	9" Flat Mount Tank Bracket Set
08-0106	9" Tube Mount 1 1/2" Tank Bracket Set

Replacement Dip Sticks

Part #	Description
08-9608	Dip Stick for 08-9016 & 08-9018

Heaters

Part #	Description
08-0300	300 Watt Immersion Heater
08-0301	300 Watt 2"x15" Wrap Around Heater
08-0302	400 Watt 4"x10" Wrap Around Heater
08-1300	300 Watt Immersion Heater 220 Volt
08-1301	300 Watt 2"x15" Wrap Around Heater 220/240 Volt
08-1302	400 Watt 4"x10" Wrap Around Heater 220/240 Volt
