LS7
Oil Tank

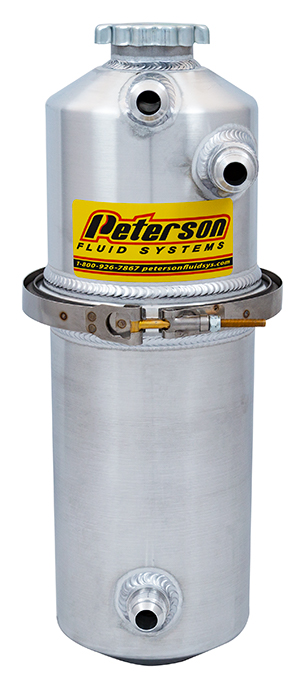

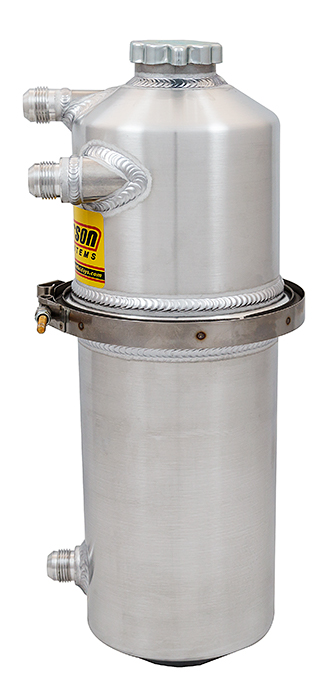

Our oil tank for LS7 applications features all of the race proven technology of our dry sump oil tanks with the fittings needed to work with the popular LS7 engine. This tank will work in the majority of swap applications, however, it will not work as a direct swap for the tank in the Corvette. We also can build custom tanks for LS7 swaps if this tank will not work in your specific application.

Features

Specifications

Height: 19.5" / 39.37cm
Diameter: 6" / 15.24cm

Part Numbers

Part # Description
08-0005-ATS 2 Gallon Oil Tank Single Scavenge Inlet, -12 AN Male Fittings

Accessories

Part # Description
08-0400-ATS LS7 Breather Can
08-0100 6" Flat Mount Tank Bracket Set
08-0300 300 Watt Immersion Heater
08-0301 300 Watt 2"x15" Wrap Around Heater
08-0302 400 Watt 4"x10" Wrap Around Heater
08-1300 300 Watt Immersion Heater 220 Volt
08-1301 300 Watt 2"x15" Wrap Around Heater 220/240 Volt
08-1302 400 Watt 4"x10" Wrap Around Heater 220/240 Volt
