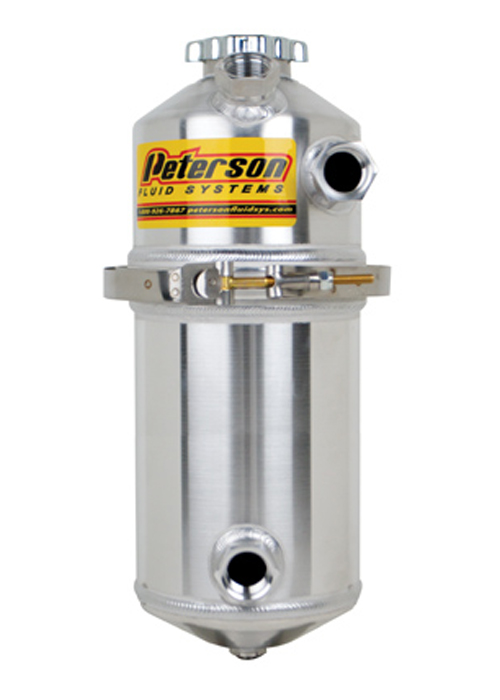

2 Gallon Oil Tank

Peterson oil tanks are the leader in tank technology. Manufactured using aircraft quality components, internal baffling provides excellent deaeration of the scavenge oil while maintaining a tall column of oil over the pickup. The tanks disassemble easily and the tank tops can rotate in relation to the bottoms for ease in fitting placement.

Features

Specifications

Height: 19.5" / 49.53cm
Diameter: 6" / 15.24cm

Part Numbers

Part # Description
08-0005 Single Inlet, -12 AN Female Fittings
08-0006 Dual Inlet, -12 AN Female Fittings
08-0025 Single Inlet, -12 AN Male Fittings
08-0026 Dual Inlet, -12 AN Male Fittings

Accessories

Brackets

Part # Description
08-0100 6" Flat Mount Bracket Set

Heaters

08-0300 300 Watt Immersion Heater
08-0301 300 Watt 2"x15"
Wrap Around Heater
08-0302 400 Watt 4"x10"
Wrap Around Heater
08-1300 300 Watt Immersion Heater 220 Volt
08-1301 300 Watt 2"x15"
Wrap Around Heater 220/240 Volt
08-1302 400 Watt 4"x10"
Wrap Around Heater 220/240 Volt

Fittings

Part # Description
08-0501 -10 AN Male x -12 AN Port
08-0502 -12 AN Male x -12 AN Port
08-0503 -16 AN Male x -12 AN Port
08-0504 -6 AN Port Plug (Drain Plug)
