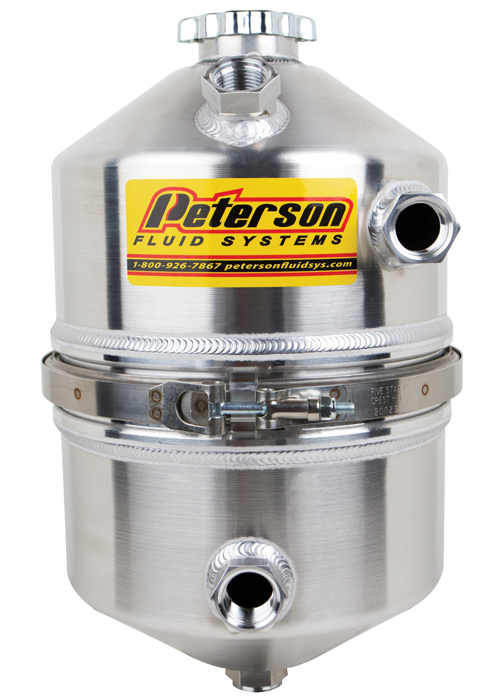

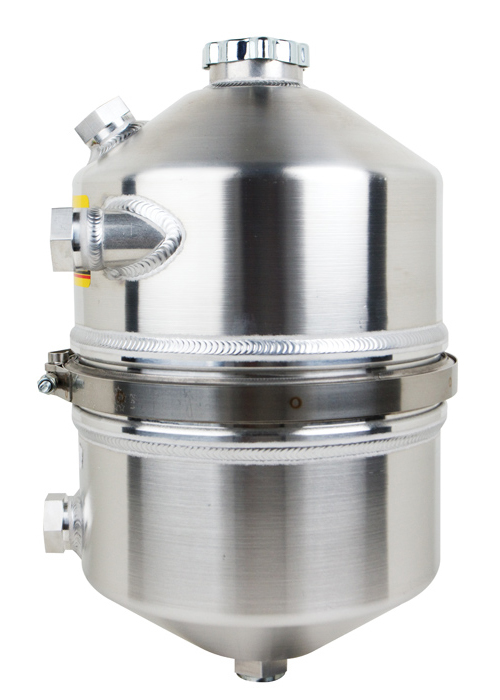

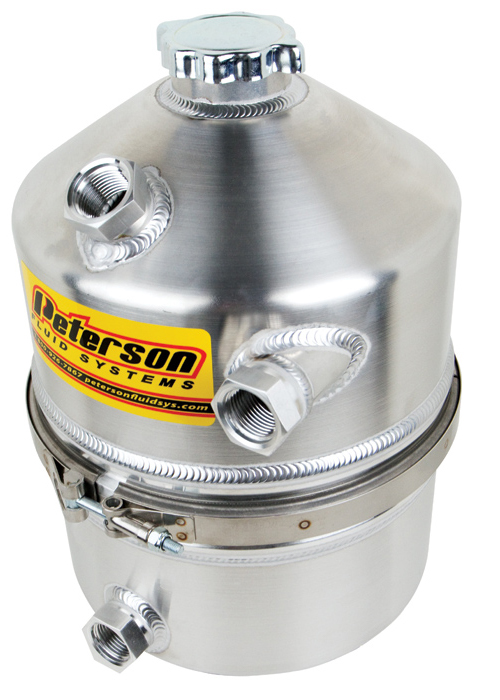

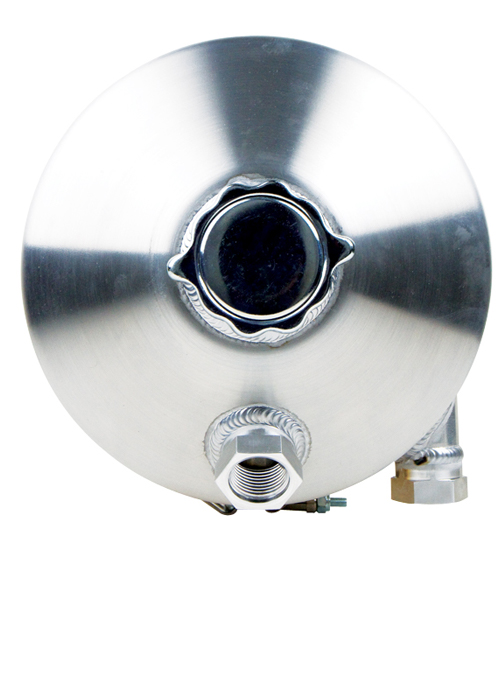

3 Gallon Oil Tank

Peterson oil tanks are the leader in tank technology. Manufactured using aircraft quality components, internal baffling provides excellent deaeration of the scavenge oil while maintaining a tall column of oil over the pickup. The tanks disassemble easily and the tank tops can rotate in relation to the bottoms for ease in fitting placement.

Features

Specifications

Height: 16" / 40.64cm
Diameter: 9" / 22.86cm

Part Numbers

Part # Description
08-0009 3 Gallon Oil Tank Single Scavenge Inlet
08-0010 3 Gallon Oil Tank Dual Scavenge Inlet

Accessories

Brackets

Part # Description
08-0101 9" Flat Mount Tank Bracket Set
08-0106 9" Clamp Style Tank Bracket Set 1 1/2" Tube

Heaters

Part # Description
08-0300 300 Watt Immersion Heater
08-0301 300 Watt 2"x15" Wrap Around Heater
08-0302 400 Watt 4"x10" Wrap Around Heater
08-1300 300 Watt Immersion Heater 220 Volt
08-1301 300 Watt 2"x15" Wrap Around Heater 220/240 Volt
08-1302 400 Watt 4"x10" Wrap Around Heater 220/240 Volt

Fittings

Part # Description
08-0501 -10 AN Male x -12 AN Port
08-0502 -12 AN Male x -12 AN Port
08-0503 -16 AN Male x -12 AN Port
08-0505 -12 AN Port Plug (Drain Plug)
