Water Manifolds

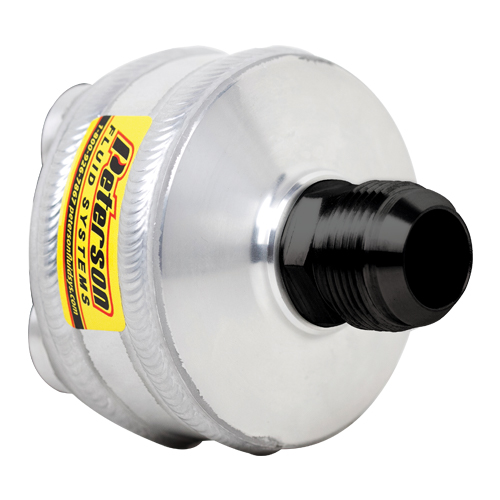

Our water manifold provides a solution to those running a head and intake manifold combinations with no water crossover. It features billet aluminum manifold ends which are hand welded to the center tube. This manifold is available with a standard radiator cap flange or in a more compact design with no radiator cap flange. Manifold outlet is available in -16 or -20 AN fitting or a 1.25" or 1.5" push on. This fitting is removable so you can change it if your system changes. The other features (4) -10 AN ports to fit any adapter fittings you need to plumb your system. There is also a port for a 5/8-18 mechanical temp sender. We have an adapter to reduce it to an 1/8" NPT for electrical sender or a plug if you do not wish to use it.

Features

Specifications

Length:3.100"/4.550"(w/Rad Cap)
Diameter:3.600"

Part Numbers

Water Manifold

Part # Description
10-1006 -16 AN Water Manifold
10-1007 -20 AN Water Manifold
10-1008 1.25" Push On AN Water Manifold
10-1009 1.5" Push On AN Water Manifold

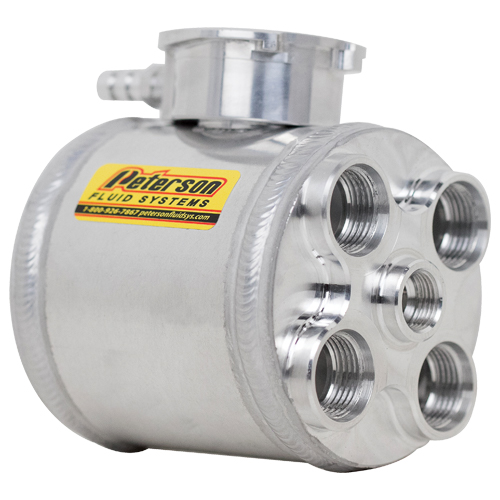

Water Manifold w/ Radiator Cap

Part # Description
10-1000 -16 AN Water Manifold w/ Radiator Cap
10-1001 -20 AN Water Manifold w/ Radiator Cap
10-1002 1.25" Push On AN Water Manifold w/ Radiator Cap
10-1003 1.5" Push On AN Water Manifold w/ Radiator Cap

Accessories

Part # Description
15-1005 -10 AN Male x -10 AN Port
15-1006 -12 AN Male x -10 AN Port
15-1007 -16 AN Male x -10 AN Port
15-1010 -10 AN Port Plug
15-1014 1/8" NPT x 5/8-18
