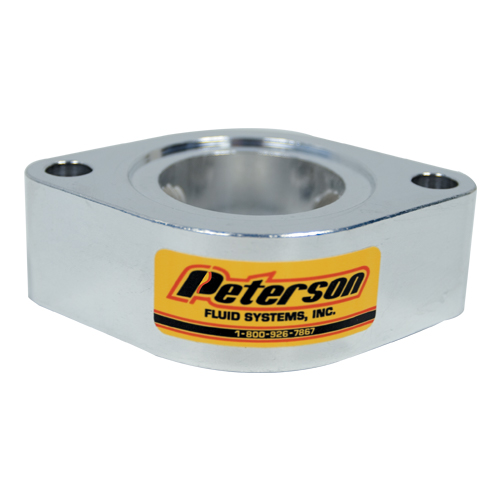

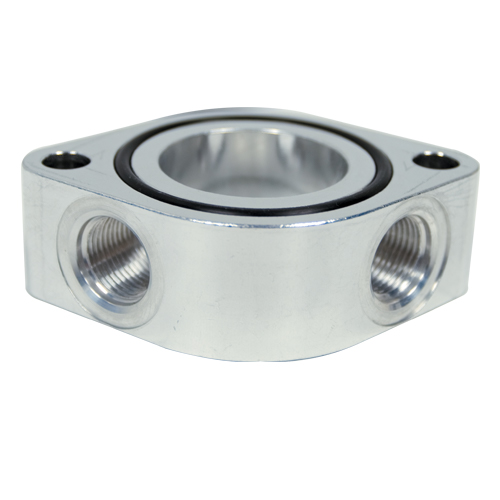

Water neck riser Water neck riser top Water neck riser bottom

Water Neck Riser Blocks

Machined from billet aluminum. These have o-ringed flanges and accomodate a thermostat. Available with -6 AN, -8 AN or -10 AN ports for cylinder head water lines.

Features

Specifications

Part # Height Length Width Mount C to C
10-2250 .950" 2.750" 3.95" 3.230"
10-2251 .950" 2.750" 3.95" 3.230"
10-2252 .950" 2.750" 3.95" 3.230"
10-2255 1.200" 2.750" 3.95" 3.230"
10-2256 1.200" 2.750" 3.95" 3.230"
10-2257 1.200" 2.750" 3.95" 3.230"

Part Numbers

1" Thick

Part # Description
10-2250 Plain Riser
10-2251 Riser w/ (2) -6 AN Ports
10-2252 Riser w/ (2) -6 AN Ports & temp sender port

1.25" Thick

Part # Description
10-2255 Plain Riser
10-2256 Riser w/ (2) -8 AN Ports
10-2257 Riser w/ -10 AN Port

Accessories

Fittings

Part # Description
15-1001 -8 AN Male x -6 AN Port
15-1002 -10 AN Male x -8 AN Port
15-1003 -6 AN Male x -6 AN Port
15-1004 -8 AN Male x -8 AN Port
15-1005 -10 AN Male x -10 AN Port
15-1006 -12 AN Male x -10 AN Port
15-1007 -16 AN Male x -10 AN Port
15-1015 -8 AN Male x -10 AN Port
15-1020 -4 AN Male x -6 AN Port
15-1020 -4 AN Male x -6 AN Port
