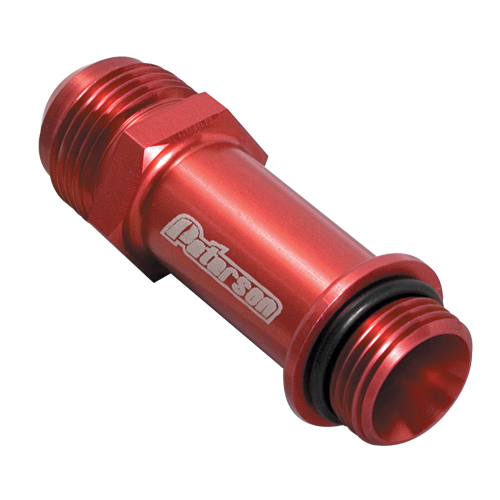

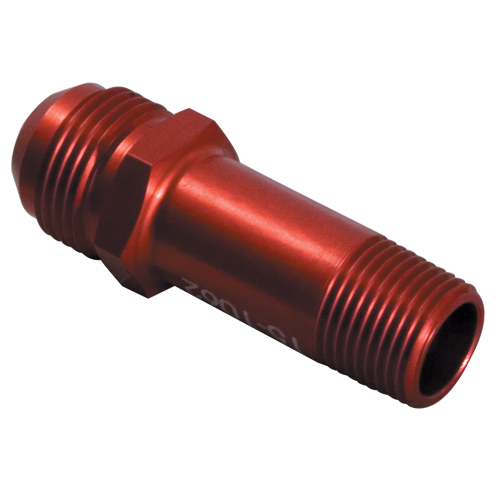

Oil Inlet Fittings
Oil Inlet Fittings are made to allow oil imput at the front of the block over the water pump on Small Block Chevy engines. Available in several pipe and AN sizes to fit most applications.
Oil Inlet Fittings are made to allow oil imput at the front of the block over the water pump on Small Block Chevy engines. Available in several pipe and AN sizes to fit most applications.
| Part # | Length | Width | Hex Flats |
|---|---|---|---|
| Steel | |||
| 15-1072 | 3.000" | .676" | 1.000" |
| 15-1074 | 3.1" | .676" | 1.062" |
| 15-1076 | 5.5" | .676" | 1.062" |
| Part # | Length | Width | Hex Flats |
|---|---|---|---|
| Steel | |||
| 15-1070 | 3.000" | .850" | 1.000" |
| 15-1071 | 3.100" | .850" | 1.062" |
| 15-1075 | 3.860" | .850" | 1.062" |
| Aluminum | |||
| 15-1061 | 3.000" | .850" | 1.000" |
| 15-1062 | 3.100" | .850" | 1.062" |
| 15-1063 | 3.500" | .850" | 1.000" |
| Part # | Length | Width | Hex Flats |
|---|---|---|---|
| Aluminum | |||
| 15-1080 | 3.250" | .850" | 1.000" |
| 15-1081 | 3.750" | .850" | 1.000" |
| 15-1082 | 3.250" | .850" | 1.062" |
| 15-1083 | 3.750" | .850" | 1.062" |
| Part # | Length | Width | Hex Flats |
|---|---|---|---|
| Aluminum | |||
| 15-1090 | 3.250" | .850" | 1.000" |
| 15-1091 | 3.750" | .850" | 1.000" |
| 15-1092 | 3.250" | .850" | 1.062" |
| 15-1093 | 3.750" | .850" | 1.062" |
| Part # | Description |
|---|---|
| Steel | |
| 15-1072 | -10AN x 3/8" NPT 3" long |
| 15-1074 | -12AN x 3/8" NPT 3.1" long |
| 15-1076 | -12AN x 3/8" NPT 5.5" long |
| Part # | Description |
|---|---|
| Steel | |
| 15-1070 | -10AN x 1/2" NPT 3" long |
| 15-1071 | -12AN x 1/2" NPT 3.1" long |
| 15-1075 | -12AN x 1/2" NPT 3.8" long w/ (2) 1/8" NPT ports |
| Aluminum | |
| 15-1061 | -10AN x 1/2" NPT 3" long |
| 15-1062 | -12AN x 1/2" NPT 3" long |
| 15-1063 | -10AN x 1/2" NPT 3.5" long |
| Part # | Description |
|---|---|
| Aluminum | |
| 15-1080 | -10AN x -10AN Port 3.25" long |
| 15-1081 | -10AN x -10AN Port 3.75" long |
| 15-1082 | -12AN x -10AN Port 3.25" long |
| 15-1083 | -12AN x -10AN Port 3.75" long |
| Part # | Description |
|---|---|
| Aluminum | |
| 15-1090 | -10AN x -12AN Port 3.25" long |
| 15-1091 | -10AN x -12AN Port 3.75" long |
| 15-1092 | -12AN x -12AN Port 3.25" long |
| 15-1093 | -12AN x -12AN Port 3.75" long |
| Part # | Description |
|---|---|
| xx-xxxx | -10 AN O-Rings 5/pack |
| xx-xxxx | -12 AN O-Rings 5/pack |
