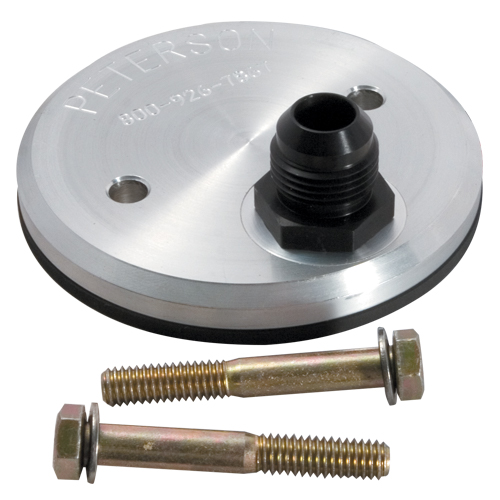

Our oil filter block off plates facilitate the hook up of wet and dry sump oil pressure lines to the engine's stock oil filter pad.Plates are made from billet aluminum and come with all mounting hardware necessary. Stock oil pump passage must be blocked off when using an external oil pump.
| Part # | Height | Diameter | Mount C to C |
|---|---|---|---|
| 09-0001 | .500" | 3.975" | N/A |
| 09-0002 | .500" | 3.975" | N/A |
| Part # | Description | ||
|---|---|---|---|
| 09-0003 | .500" | 3.975" | 2.375" |
| 09-0004 | .500" | 3.975" | 2.375" |
| Part # | Description | ||
|---|---|---|---|
| 09-0010 | 1.000" | 2.985" | N/A |
| 09-0011 | 1.000" | 2.985" | N/A |
| Part # | Description |
|---|---|
| 09-0001 | -10 AN Inlet Fitting (1) 3/8-16 bolt mount |
| 09-0002 | -12 AN Inlet Fitting (1) 3/8-16 bolt mount |
| Part # | Description |
|---|---|
| 09-0003 | -10 AN Inlet Fitting (2) 5/16-18 bolt mount |
| 09-0004 | -12 AN Inlet Fitting (2) 5/16-18 bolt mount |
| Part # | Description |
|---|---|
| 09-0010 | -10 AN Inlet Fitting |
| 09-0011 | -12 AN Inlet Fitting |
| Part # | Description |
|---|---|
| 09-0020 | Square O-Ring for 09-0001 thru 09-0004 |
| 09-0021 | O-Ring for 09-0010 &09-0011 |
