3 Filter - 600 Series - Peterson Fluid Systems \

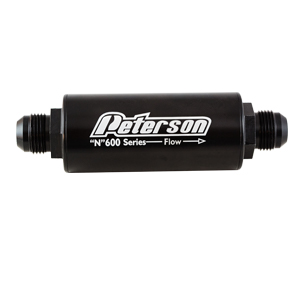

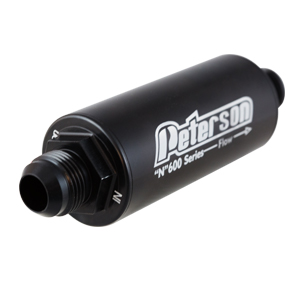

Alt title of image 600 Series Inline Filter 600 Series Inline Filter

Filters 600 Series

Peterson's 600 series filter features our same quality filter in a smaller package for fuel systems. Billet aluminum construction, anodizing and a stainless screen element assure durability and compatibility with most fluids. These filters also have the option of an integral ball valve in the inlet cap. Available in 45, 60 or 100 inless steel elements or 1 10/20 micron cellulose element. End caps are available in -4 through -12 AN.

Features

Specifications

600 Series

Fitting Length Tube Diameter
6 6.186" 1.980"
8 6.388" 1.980"
10 6.590" 1.980"
12 6.802" 1.980"

Part Numbers

45 Micron

Part # Description
09-0610 -6 AN Fittings
09-0611 -8 AN Fittings
09-0612 -10 AN Fittings
09-0613 -12 AN Fittings

60 Micron

Part # Description
09-0616 -6 AN Fittings
09-0617 -8 AN Fittings
09-0618 -10 AN Fittings
09-0619 -12 AN Fittings

100 Micron

Part # Description
Standard
09-0620 -6 AN Fittings
09-0621 -8 AN Fittings
09-0622 -10 AN Fittings
09-0623 -12 AN Fittings

Accessories

Mount Brackets

Part # Description
09-0690 Fits 1 1/4" Tube
09-0691 Fits 1 3/8" Tube
09-0692 Fits 1 1/2" Tube
09-0693 Fits 1 3/4" Tube
09-0695 Fits 2" Tube
09-0694 Firewall Mount

Rebuild Kits

Part # Description
09-0689 (3) Orings for Methanol, Oil and Leaded Fuels
09-0686 (3) Viton Orings for Oil and Leaded Fuels
09-0688 (3) Orings for NASCAR Unleaded Fuels
