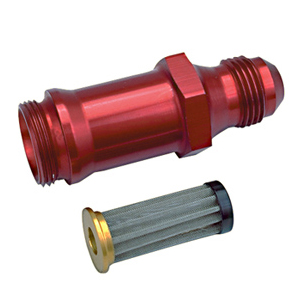

Alt title of image Carb Mount Filter Holley Thread -4 Inline Filter

Filters 700 Series

The 700 series filter features a small compact size for final filtering of fuel or oiling of accessories such as turbos or valve train sprayers. They feature the same anodized aluminum construction and pleated stainless steel elements of our larger filters. Available as an inline version or a direct screw in for most popular carbuerators.

Features

Specifications

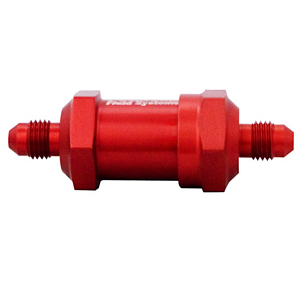

Inline

Part # Length Width Weight
09-0730 3.25" 0.9" 1.3 oz
09-0720 4.25" 0.75" 1.8 oz
09-0722 4" .8" 2.1 oz

Carbuerator

Part # Length Width Weight
09-0701
09-0702
09-0714 3.65" 1" Hex 1.4 oz
09-0715 3.3" 1" Hex 1.2 oz
09-0711 3.75" 1" Hex 1.6 oz
09-0712 3.3" 1" Hex 1.4 oz
09-0751 4" .975" Hex 1.9 oz
09-0752 4" .975" Hex 1.9 oz

Part Numbers

Inline

Part # Description
09-0730 -4 AN Fittings
09-0720 -6 AN Fittings
09-0722 -8 AN Fittings

Carbuerator

Part # Description
09-0701 -8 AN B-Nut Holley
09-0702 -8 AN Male Holley
09-0714 -6 AN B-Nut Long Holley
09-0715 -6 AN Male Long Holley
09-0711 -8 AN B-Nut Long Holley
09-0712 -8 AN Male Long Holley
09-0751 -8 AN B-Nut Long Demon/Braswell
09-0752 -8 AN B-Nut Long 3/4-16 Braswell
